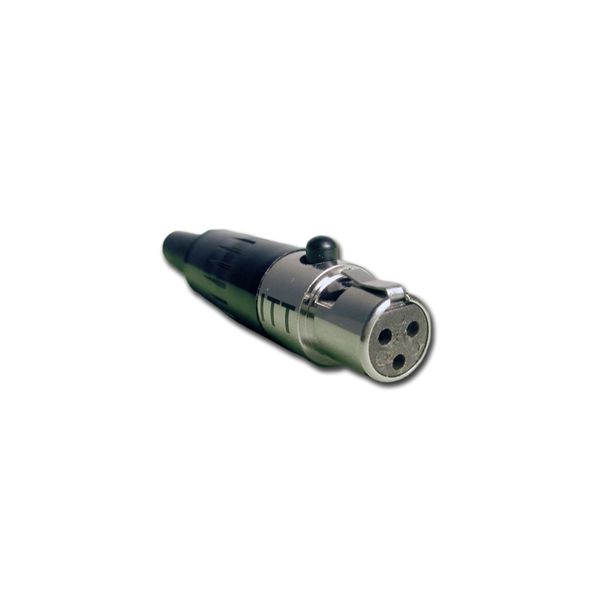

Feature:
- 40% smaller than standard XLR
- Rugged design to withstand extreme field use
- Ideal for high density applications
- Quick disconnect latch lock
Mechanical
| APPLICATION / MARKET: | Aerospace, Defense, Industrial, Transportation |
| SHAPE: | Circular |
| SHELL STYLE: | Cable connecting plug, flange and front mount receptacle |
| DURABILITY: | 500 Mating Cycles |
| POWER & SIGNAL IN SAME LAYOUT: | No |
| CONTACT STYLE / TERMINATION: | Solder |
Material
| SHELL: | Copper |
| SHELL PLATING: | Nickel |
| INSULATOR: | PPS (polyphenylene sulfide) |
| CONTACT: | Copper |
| CONTACT PLATING: | Gold |
Electrical
| OPERATING VOLTAGE: | 125 VAC |
| CURRENT RATING: | 3A |
| NUMBER OF SIGNAL CONTACTS (MIN/MAX): | 3-6 |
| GAUGE WIRE SIZE: | 24 AWG |
Environmental
| SEALING: | Not Available |
| OPERATING TEMPERATURE: | -35°C to +85°C, |
