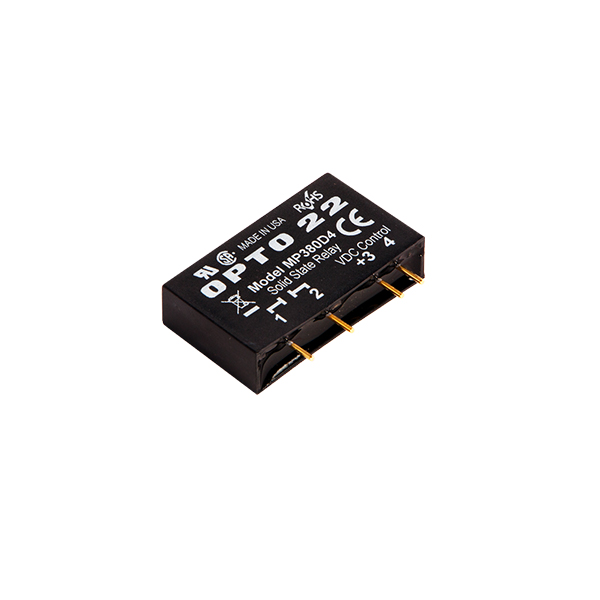

MP380D4

The MP380D4 is a DC-controlled MP Series relay that switches 380 VAC at up to 4 A.

MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers’ part number cross-reference list.

This SSR carries a lifetime warranty.

Specifications:

	MP120D2 or P120D2	MP120D4 or P120D4	MP240D2 or P240D2	MP240D4 or P240D4	MP380D4
Nominal AC Line Voltage	120	120	240	240	380
Nominal Current Rating (Amps)	2*	4*	2*	4*	4*
1 cycle Surge (Amps) Peak	20	85	20	85	85
Nominal Signal Input Resistance (Ohms)	1000	1000	1000	1000	1000
Signal Pick-up Voltage	3VDC** (24V allowed)	3VDC** (24V allowed)	3VDC** (24V allowed)	3VDC** (24V allowed)	3VDC** (24V allowed)
Signal Drop-out Voltage	1 VDC	1 VDC	1 VDC	1 VDC	1 VDC
Peak Repetitive Voltage Maximum	600	600	600	600	800
Maximum Output Voltage Drop	1.6 volts	1.6 volts	1.6 volts	1.6 volts	1.6 volts
Off-State Leakage mA Maximum***	5 mA	5 mA	5 mA	5 mA	5 mA
Operating Voltage Range (Volts AC)	12–140	12–140	24–280	24–280	24–420
I²t Rating t=8.3 (ms)	2	30	2	30	30
Isolation Voltage	4,000 V_RMS	4,000 V_RMS	4,000 V_RMS	4,000 V_RMS	4,000 V_RMS
θjc °C/Watt	20	6.5	20	6.5	6.5
Dissipation Watts/Amp	1.2	1.2	1.2	1.2	1.2
Rating (Motor Load)	1 FLA at 120 VAC 6 LRA at 120 VAC	2.5 FLA at 240 VAC 6 LRA at 240 VAC	1 FLA at 120 VAC 15 LRA at 120 VAC	2.5 FLA at 240 VAC 15 LRA at 240 VAC	2.5 FLA at 380 VAC 15 LRA at 380 VAC
Notes: * Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859). = P Series 32 volts maximum. * Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage). ****θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
