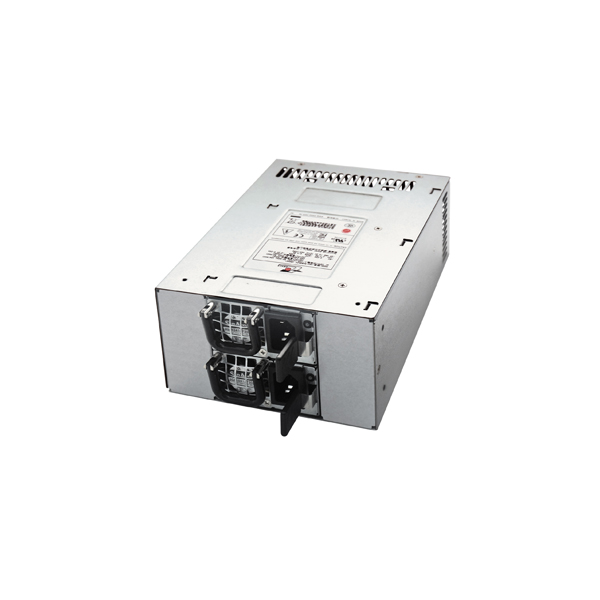

MRZ-5AF0K2V

Output Wattage:

• 1600W

Dimension:

• 222x150x86(mm)
• 8.74×5.91×3.39(inch)

Input Spec:

• VOLTAGE: 100～264VAC.
• FULL RANGE FREQUENCY: 47～63HZ.
• INPUT CURRENT: 10A (RMS) FOR 115 VAC / 5A (RMS) FOR 230 VAC.
• INRUSH CURRENT: 40A MAX. FOR 115 VAC PER MODULE / 60A MAX. FOR 230 VAC PER MODULE(AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT).

• PFC: UP T”.

Features:

• TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃.
• HOLD UP TIME：WHEN POWER SHUTDOWN ALL THE DC OUTPUT VOLTAGE MUST BE MAINTAIN 16mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE (75% LOADING).
• THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86%.
