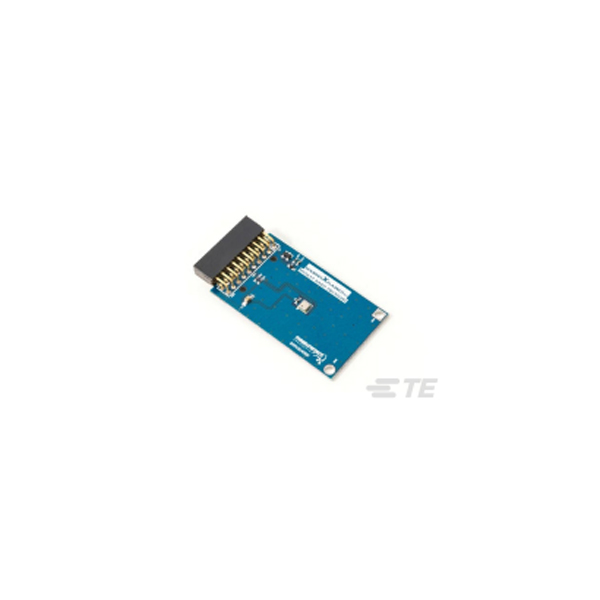

The MS5637 series wing board for XplainedPro is a self-contained pressure and temperature sensor that is fully calibrated during manufacture. The sensor can operate from 1.5V to 3.6V. The sensor module includes a high-linearity pressure sensor and an ultralow power 24 bits ΔΣ ADC with internal factory-calibrated coefficients.
Benefits:
- 20-pin Xplained Pro compatible connector
- I2C interface/Communication
- Xplained Pro Hardware identification Chip
- Atmel Studio 6 Project available for download
- µC C code available for download
- 24 bits resolution for pressure
- 24 bits resolution for temperature
- Measures pressure from 300mar to 1200mbar
- Measures temperature from -40°C to 125°C
- Fully calibrated
- Fast response time
- Very low power consumption
- Operates from 1.5V to 3.6V
- Altitude resolution at sea level is 20 cm of air
- Fast conversion time – 0.5ms typical
Product Type Features
- Digital Component Sensor Product Type Xplained Pro
- Digital Component Sensor Type Pressure
Reference Number
- TE Internal Number CAT-DCS0013
