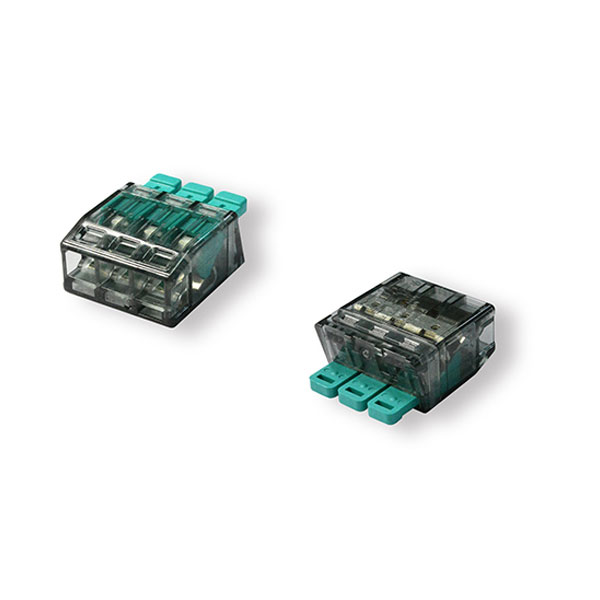

N3, Splicing Wire Connector

• Standard:                      UL486C
• Rated voltage:               600V
• Rated current:                35A
• Wire range:                    24-12AWG
• Wire strip length:            11-12mm
• Operating temperature:  -40℃ to 105℃

Advantages:

• All conductor types with size from 0.2 to 4 mm2(24–12 AWG) is possible;
• Translucent body for visual inspection shows whether the conductor is inserted properly and stripped to the correct length.
• Two easy-to-access test ports, one in the conductor entry direction and one opposite of this, provide convenient testing conditions.
• The wire system is opened initially, which will save customer’ wiring time.
