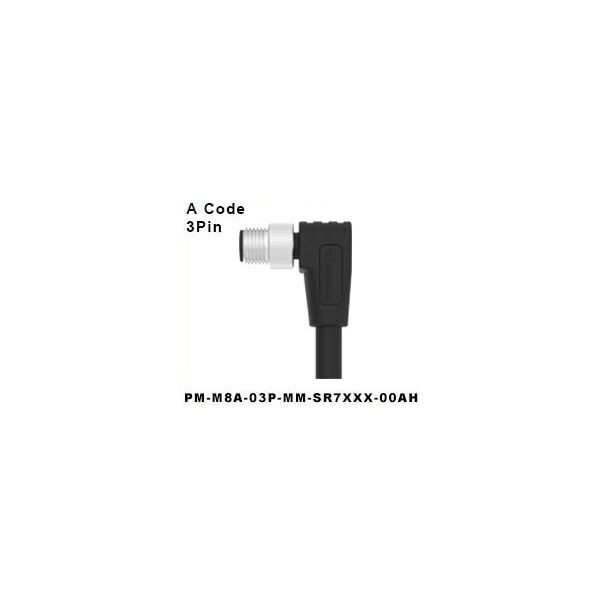

Specification |
||
| Convention | ||
| Standard | M8 IEC 61076-2-104 | |
| Number of contacts | 3 | |
| Coding | A – coded | |
| Connector Style | 90°Male | |
| Termination | Solder | |
| Operating temperature | -25 °C … +80 °C | |
| Shielding | Unshielded | |
| IP Rating | IP67 | |
| Mechanical operation | >100 | |
| Torque | 0.3 Nm … 0.4 Nm | |
| Installation type | Screwable | |
| Electrical properties | ||
| Rated current (40oC) | 3A | |
| Rated voltage | 60V | |
| Rated surge voltage | 850V | |
| Contact resistance | <10mΩ | |
| Insulation resistance | ≥100MΩ | |
| Degree of pollution | 3 | |
| Overvoltage category | II | |
| Material | ||
| Flammability rating according to UL 94 | V0 | |
| Contact material | CuZn | |
| Contact surface material | Au | |
| Contact material | PA/PU | |
| Sealing material | Silicone | |
| Cable gauge | ||
| Conductor cross section | 0.25mm² | |
| AWG signal line | 24 AWG | |
| Wire colors | 1.BN, 3.BU, 4.BK | |
| Material conductor insulation | PUR / PVC | |
| Environmental protection | RoHS | |
| Key Commercial Data | ||
| MOQ | 100 PCS | |
