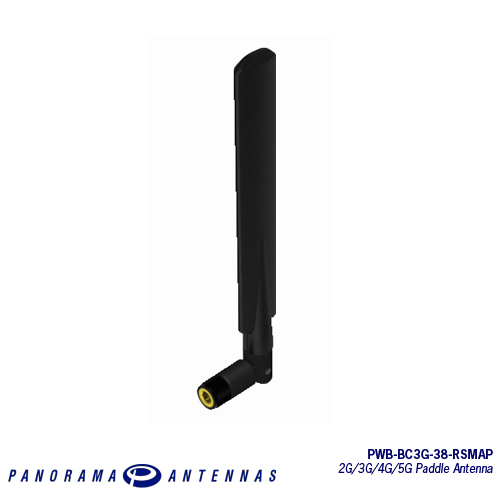

The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G/4G and 3.4-3.8GHz 5G frequecies from 698-960/1710- 2170 /2500-2700/ 3400-3800MHz
Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.
Product Variants
| Part Number | Frequency Range (MHz) |
| PWB-BC3G-38-RSMAP | 698-960/1710-2170/2396-2700/3400-3800 |
Specifications
| Electrical Data | |
| LTE Frequencies | 698-960/1710-3800MHz |
| Typical VSWR | <3:1 |
| Peak Gain (dBi) | 2 |
| Max Input Power (W) | 10 |
| Pattern | Omni-directional |
| Mechanical Data | |
| Available Colours | Black; White |
| Length (mm) | 163 (6.4”) |
| Width (mm) | 22 (0.8”) |
| Height (mm) | 7 (0.27”) |
| Operating Temperature | -40 / + 80°C |
| Mounting Data | |
| Mounting Type | Articulated Hinge |
| Mounting Method | SMA Plug |
