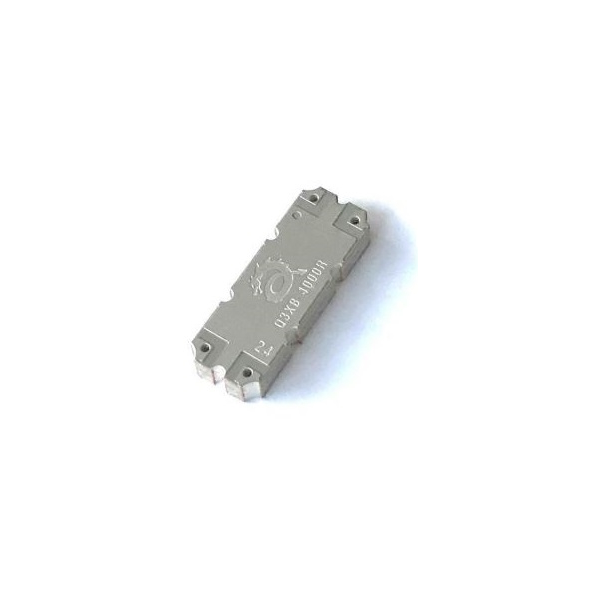

The Q3XB-4000R from Electro-Photonics is a 90 degree hybrid coupler that operates from 1.7 to 6 GHz. The hybrid coupler can handle up to 85 watts of power and has a low insertion loss. It is available in a surface mount package.
Product Details
- Part Number: Q3XB-4000R
- Manufacturer: Electro-Photonics LLC
- Description: Surface Mount 90 Degree Hybrid Coupler from 1.7 to 6 GHz
General Parameters
- Frequency: 1.7 to 6 GHz
- Average Power: 50 W @Freq(1.7 to 6 GHz), 85 W@Freq(1.7 to 4.7 GHz)
- Insertion Loss: 0.17 to 0.30 dB
- Isolation: 18 dB
- Coupling: 3 dB
- Amplitude Balance: +/- 1 dB
- Phase Balance: +/- 2 Degrees
- Package Type: Surface Mount
- Operating Temperature: -55 to 85 Degree C
- RoHS: Yes
