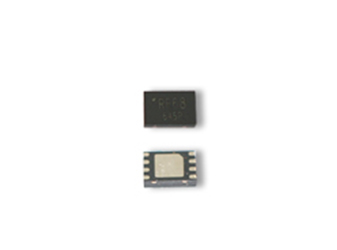

RF68W Sub-GHz transmitter IC


1. Descriptions of RF Transmitter IC RF68W:

The RF68W is an ultra-low-cost, fully integrated FSK or OOK RF transmitter IC suitable for operation between 310 and 450 MHz, 860 and 870 MHz, as well as 902 and 928 MHz. For applications where economy is paramount, the RF68W may be used without the requirement for configuration via an MCU.

However, in conjunction with a microcontroller the communication link parameters may be re-configured. Including, output power, modulation format and operating channel. The RF68W offers integrated radio performance with cost efficiency and is suited for operation in North America FCC part 15.231, FCC part 15.247 DTS and FHSS modes, 15.249, and Europe EN 300 220.

2. Features of RF Transmitter IC RF68W:

● +10 dBm or 0 dBm Configurable output power

● Bit rates up to 100 kbps

● OOK and FSK modulation

● 1.8 to 3.7 V supply range

● Low BOM Fully Integrated Tx

● Fractional-N PLL with 1.5 kHz typical step

● Frequency agility for FHSS modulation

● FCC Part 15.247 DTS Mode compliant

3. Applications of RF Transmitter IC RF68W:

● Garage Door Openers

● Low-Cost Consumer Electronic Applications

● Remote Keyless Entry (RKE)

● Remote Control / Security Systems
