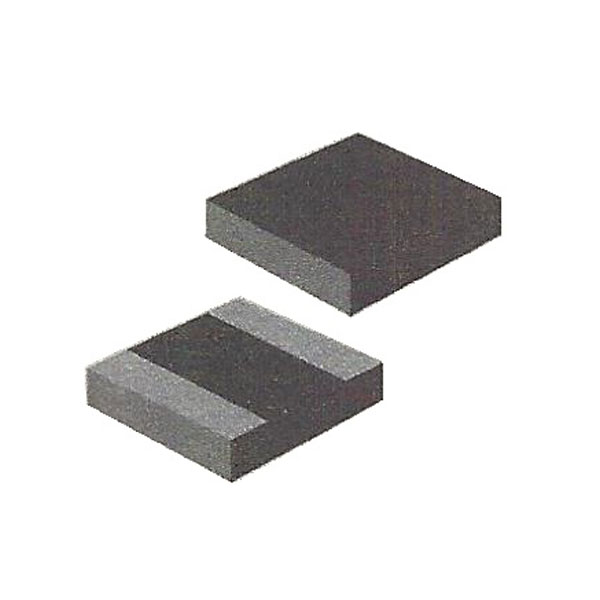

Specifications
| Part No. | Inductance (µH) |
Tolerance (%) |
DC Resistance (milliohms) Max. (typ.) |
DC amps ΔL/L=30% |
DC amps ΔT=40⁰C. |
| MPIC454320-R47 | 0.47 | ±20 | 9.0(7.5) | 10.0 | 8.5 |
| MPIC454320-1R0 | 1.0 | ±20 | 18(15) | 6.0 | 5.8 |
| MPIC454320-2R2 | 2.2 | ±20 | 33(28) | 4.6 | 4.4 |
| MPIC454320-3R3 | 3.3 | ±20 | 54(45) | 3.6 | 3.4 |
| MPIC454320-4R7 | 4.7 | ±20 | 70(58) | 3.2 | 3.0 |
| MPIC454320-6R8 | 6.8 | ±20 | 90(75) | 2.6 | 2.5 |
| MPIC454320-100 | 10.0 | ±20 | 126(105) | 2.3 | 2.2 |
| MPIC454320-220 | 22.0 | ±20 | 282(235) | 1.5 | 1.5 |
Maximum allowable DC current is that which caused a 30% inductance reduction from the initial value, or the coil temperature to rise by 40⁰C. whichever is smaller.
Environmental Data:
Halogen free, lead free, RoHS compliant
Storage temperature : -55⁰ to +125⁰C.
Operating temperature : -55⁰ to +125⁰C.
