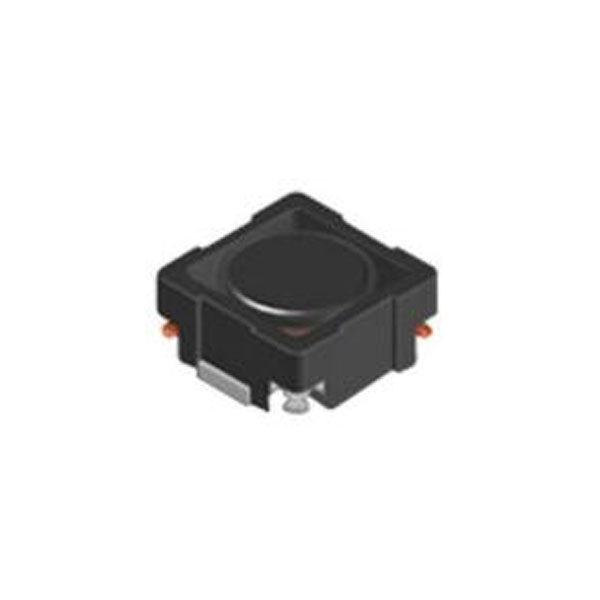

SSP12080NH-101M
Inductor Power Shielded Wirewound 100uH 20% 100KHz 2.2A 0.204Ohm DCR T/R
Description
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Unconfirmed |
| Type | Power |
| Technology | Wirewound |
| Protection Style | Shielded |
| Inductance (H) | 100u |
| Inductance Decrease Percentage @ Isat (%) | 30 |
| Tolerance | 20% |
| Inductance Test Frequency (Hz) | 100K |
| Maximum DC Current (A) | 2.2 |
| Maximum Saturation Current (A) | 2.4 |
| Maximum DC Resistance (Ohm) | 0.204(Typ) |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Product Length (mm) | 12.3 |
| Mounting | Surface Mount |
| Product Depth (mm) | 12.3 |
| Product Height (mm) | 8 |
