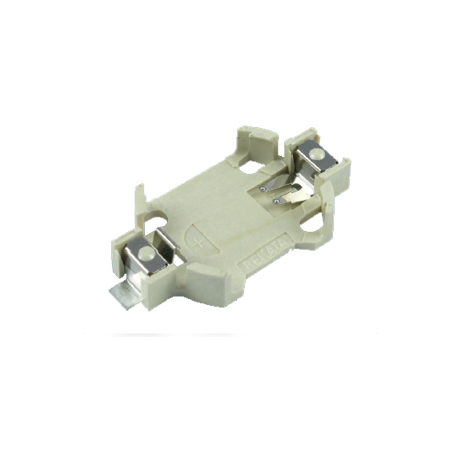

Specifications:
- Holder material: heat resistant and glass fibre filled LCP
- Flammability rating UL 94 V-0

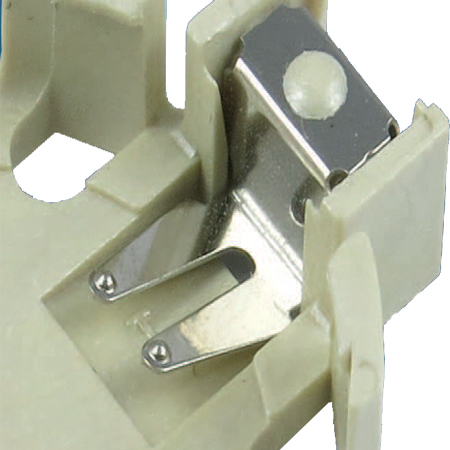

- Battery contacts: spring stainless steel AISI 301 (nickel-plated throughout / Solder areas tin-plated)
- Contact resistance between contacts and cell is less than 100 mΩ (measured at AC 1kHz)
- UL certified: file E218732
- UL 1977 compliant
- Operating temperature range -40°C / +100°C (without battery)
- Moisture Sensitivity Level: Class 1
Features:
- Safety clip provides superior retention of coin cell
- Robust design and materials
- Easy and fast replacement of battery
- Design for automatic „pick & place“ mounting
- Automated battery mounting supported
- Clear separation of connections
- Protection against short-circuits
- Protection against inverse polarity
- Protection against leak currents
- Suitable for reflow soldering
Download: Technical Drawing
