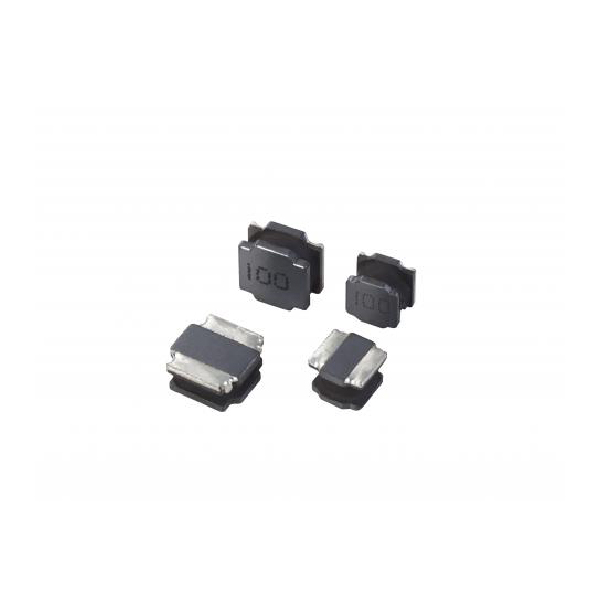

TYA201610

Features and Benefits

1. High Reliability and high performance
2. Low Power Loss and High Efficiency
3. RoHS compliant
4. Operation Temperature : -40 to +125℃
5. Automotive grade parts available upon request.

Technical Specifications

• DCR (Ω) Max Max

  1.70000
• DCR (Ω) Max Min

  0.04000
• Filter Type

  Power Line
• HEAT RATED CURRENT (Irms) (A) Max

  3.000
• HEAT RATED CURRENT (Irms) (A) Min

  0.360
• Height/Thickness (inches)

  0.05
• Height/Thickness (mm)

  1.15
• Inductance (µH) Max

  15.000
• Inductance (µH) Min

  0.240
• Length (Inches)

  0.08
• Length (mm)

  2.00
• Mounting Type

  SMT
• Operating Temperature Max (Celsius)

  125
• Operating Temperature Min (Celsius)

  -40
• ROHS Compliant

  Yes
• Saturation Current (Isat) (A) Max

  4.500
• Saturation Current (Isat) (A) Min

  0.690
• Test Frequency(MHz)

  1.00
• Tolerance (%)

  20
• Type

  Wire Wound Shielded
• Width (inches)

  0.06
• Width(mm)

  1.60
