USB CONNECTORS
Description
DUAL TYPE A USB CONNECTOR
CATALOG NUMBER |
RATING |
DIELECTRIC STRENGTH |
INSULATION RESISTANCE |
LIFE CYCLES |
|---|---|---|---|---|
| SUSB-205X-X-X | 1A @ 30 VAC | 750 VAC for 1 minute | 1000 Megohms min. @ 500 VDC | 1500 |

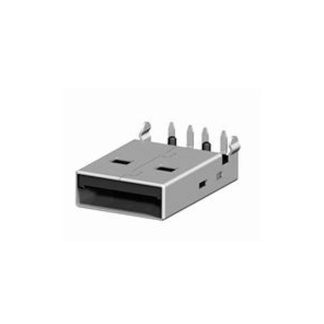

USB CONNECTOR
CATALOG NUMBER |
RATING |
DIELECTRIC STRENGTH |
INSULATION RESISTANCE |
LIFE CYCLES |
|---|---|---|---|---|
| SUSB-100-X-X | 1A @ 30 VRMS | 750 VAC | 1000 megohms min. @ 500 VDC | 1500 |
| SUSB-101-X-X | 1A @ 30 VRMS | 750 VRMS for 1 minute | 1000 megohms min. @ 500 VDC | 1500 |
| SUSB-101A-X-X | 1A @ 30 VRMS | 750 VRMS for 1 minute | 1000 megohms min. @ 500 VDC | 1500 |
| SUSB-102-X-X | 1.5A max. @ 30V max. | 500V RMS for 1 minute | 1000 megohms min. @ 500 VDC | 10000 |
| SUSB-103-X-X | 1A @ 30 VRMS | 750 VRMS for 1 minute | 1000 megohms min. @ 500 VDC | 1500 |
| SUSB-104-X-X | 1A @ 30 VRMS | 500 VRMS for 1 minute | 1000 megohms @ 500 VDC | 1500 |
| SUSB-200-X-X | 1A @ 30 VRMS | 750 VAC | 100 megohms min. @ 500 VDC | 5000 |
| SUSB-203-X-X | 1A @ 30 VAC | 100 VAC for 1 minute | 100 Megohms min. @ 500 VDC | 1500 |
