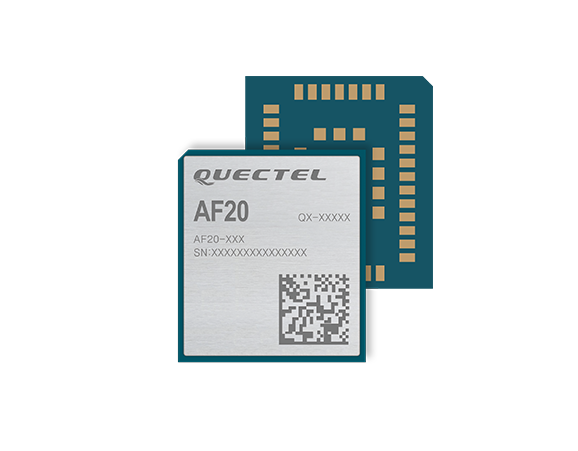

Quectel AF20 is a cost-effective Wi-Fi & BT* module with high performance. The ultra-compact 17.2mm × 15.2 mm × 2.2mm
profile makes it a perfect choice for size sensitive applications. The compact and unified form factor can also help customers
reduce product sizes and cut costs.
Surface-mount technology (SMT) makes AF20 an ideal solution for durable and rugged designs. The compact LGA package
makes sure AF20 can be easily embedded into size-constrained applications and provide reliable connectivity with these
applications. The advanced package allows for large-scale automated manufacturing which has strict requirements on cost
and efficiency.
Combining advantages such as compact form factor, low power consumption, extended temperature range and stable SDIO
interface, AF20 is typically used in combination with Quectel automotive grade LTE module AG35 to serve a wide range of
M2M applications, especially automotive industry application.
Key Benefits
- Ultra-compact Wi-Fi & BT* module
- Support BT 4.2* technology
- Support IEEE802.11a/b/g/n/ac standards
- Easier soldering and testing process with LGA package
- Stable and reliable SDIO communication interface
- Fast time-to-market: simple design minimizes design-in time and development efforts
Download: PDF
