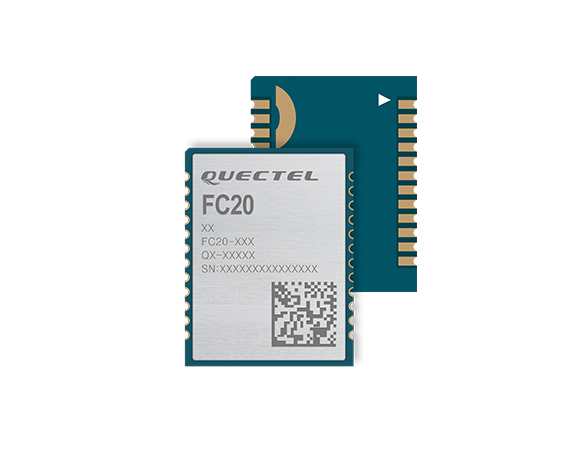

FC20 is a series of cost-effective Wi-Fi & BT module featuring high performance. Designed in ultra-compact 16.6mm × 13.0mm × 2.1mm profile, it optimizes the size and cost for end-products, which fully meets the demands of size sensitive applications. FC20 contains two variants (FC20 and FC20-N) which can be adapted to different application scenarios.
Surface-mount technology (SMT) makes FC20 an ideal solution for durable and rugged designs. The low profile and small size of LCC package make sure FC20 can be easily embedded into size-constrained applications and provide reliable connectivity with these applications. The advanced package allows for large-scale automated manufacturing which has strict requirements on cost and efficiency.
Combining advantages such as compact form factor, low power consumption, extended temperature range and stable SDIO interface, FC20 is typically used in combination with Quectel EC21, EC25, EC20 R2.0, EC20 R2.1 and EG25-G modules to serve a wide range of M2M applications, such as automotive, security, industrial PDA, MiFi and health care.
Key Benefits
- Ultra-compact Wi-Fi & BT module
- Support BT 4.2*
- Support IEEE802.11a/b/g/n/ac standards
- Easier soldering and testing process with LCC package
- Stable and reliable SDIO communication interface
- Fast time-to-market: simple design minimizes design-in time and development efforts
