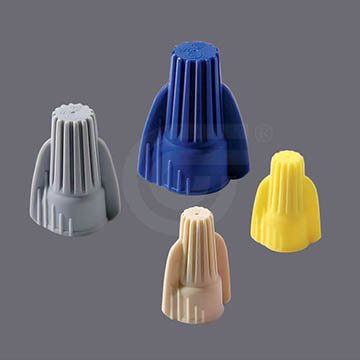

Winged Twist-On Insulated Wire Connectors


Part.No color Dimension suitable wire
AWG
temp Rating Voltage
A mm B mm C mm D mm E mm
W1 Yellow 6.7 10 19 8.7 25.9 18-10 105°C (221°F) 600V
W2 Tan 7.8 11.2 18.95 8.55 28.9 22-8 105°C (221°F) 600V
W3 Red 9.4 13.3 22.9 9.2 31.9 18-8 105°C (221°F) 600V
W4 Gray 10.5 14.5 25.1 9.6 32.83 18-8 105°C (221°F) 600V
W5 Blue 12.8 17.5 31.8 12.45 40.2 14-6 105°C (221°F) 600V
