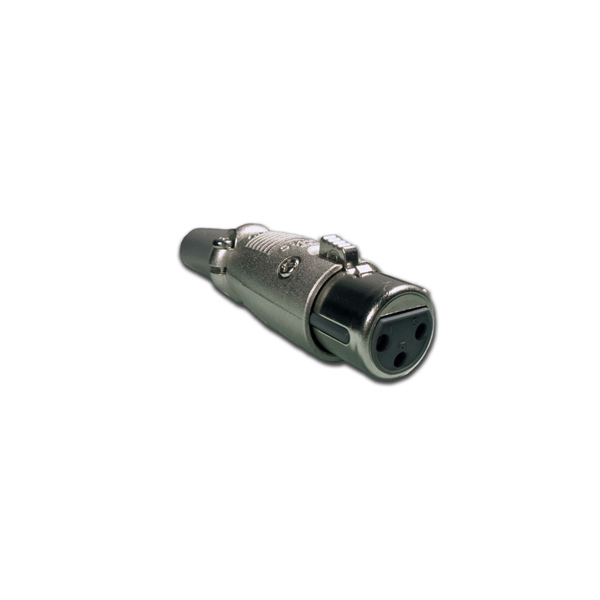

Description
Feature:
- Rugged design to withstand extreme field use
- Resilient socket insultator which minimizes vibration and electrical noise
- Quick disconnect latch lock
- Interchangable and intermateable with XLM-PCB
Mechanical
| APPLICATION / MARKET: | Aerospace, Defense, Industrial, Transportation |
| SHAPE: | Circular |
| SHELL STYLE: | Cable connecting male and female plug, flange mount receptacle, in-series adapter |
| DURABILITY: | 500 Mating Cycles |
| POWER & SIGNAL IN SAME LAYOUT: | No |
| CONTACT STYLE / TERMINATION: | Solder |
Material
| SHELL: | Aluminum Alloy |
| SHELL PLATING: | Nickel |
| INSULATOR: | Socket – Chloroprene and pin Nylon |
| CONTACT: | Copper |
| CONTACT PLATING: | Silver |
Electrical
| OPERATING VOLTAGE: | 133 VAC |
| CURRENT RATING: | 5A-15A |
| NUMBER OF SIGNAL CONTACTS (MIN/MAX): | 2-7 |
| GAUGE WIRE SIZE: | 14-20 AWG |
Environmental
| SEALING: | Not Available |
| OPERATING TEMPERATURE: | -30°C to +125°C |
