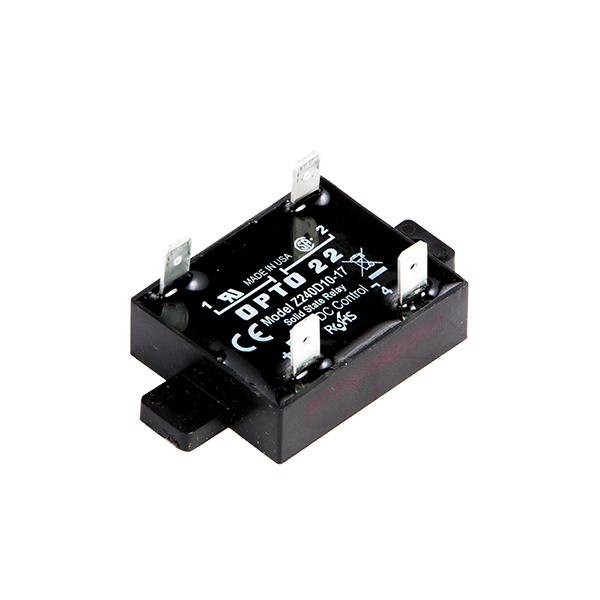

This Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR) should be used as a replacement part only. For new development, use the equivalent Z240D10 SSR instead. The two parts are manufactured identically using the same VDE-approved optocoupler and have identical specifications.
Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers’ part number cross-reference list.
NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height or alignment from one terminal to another and from one SSR to another. For PCB boards, use the MP or P series SSRs.
Specifications
NOTE: Specifications for Z240D10-17 are identical to Z240D10.
120/240 Volt Solid State Relays
AC Power Series 120/240 Volt:
Plastic Package (Z Series)
|
|
Z120D10 |
Z240D10 |
|
Nominal AC Line Voltage Nominal |
120 |
240 |
|
Current Rating (Amps) |
10 |
10 |
|
1 cycle Surge (Amps) Peak |
110 |
110 |
|
Nominal Signal Input Resistance (Ohms) |
1000 |
1000 |
|
Signal Pick-up Voltage |
3VDC (32V allowed) |
3VDC (32V allowed) |
|
Signal Drop-out Voltage |
1 VDC |
1 VDC |
|
Peak Repetitive Voltage Maximum |
600 |
600 |
|
Maximum Output Voltage Drop |
1.6 volts |
1.6 volts |
|
Off-State Leakage (mA) Maximum** |
6 mA |
12 mA |
|
Operating Voltage Range (Volts AC) |
12-140 |
24-280 |
|
I2t Rating t=8.3 (ms) |
50 |
50 |
|
Isolation Voltage |
4,000 VRMS |
4,000 VRMS |
|
θjc* (°C/Watt) Dissipation (Watts/Amp) |
4 |
4 |
|
Notes: θjc* = Thermal resistance junction to base. Maximum junction temperature is 110°C. |
||
