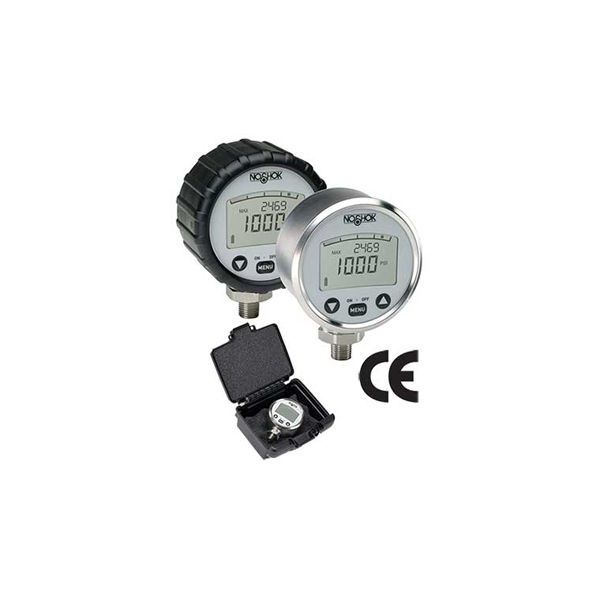

- Rugged, electronic gauge
- Compound and standard ranges through 0 psig to 10,000 psig
- 3.31″ gauge size
- Stainless Steel case
- Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
- Ideal for applications including hydraulics & pneumatics, laboratory & test equipment, leak detection, power generation and water management
Specification
| SPECIFICATIONS | |
| Pressure ranges | 0 psig to 72 psig through 0 psig to 10,100 psig Compound ranges available |
| Accuracy | ±0.25% full scale (BFSL); ±0.5% terminal point ±1 digit |
| Temperature ranges | Compensated 32 °F to 140 °F (0 °C to 60 °C) Effect ±0.15% per 10K at zero and span Span effect is ±0.005% full scale/ °F Media -22 °F to 185 °F (-30 °C to 85 °C) Ambient 14 °F to 140 °F (-10 °C to 60 °C) Storage -4 °F to 158 °F (-20 °C to 70 °C) |
| Measuring element | Stainless steel, thin-film measuring element |
| Connection | 1/4″ NPT Male, 316 stainless steel |
| Case | Stainless steel |
| Bezel | Stainless steel triangular |
| Display | Liquid Crystal Display with 0.43″ digits 4 digits up to 9999 with bar graph |
| Power requirement* | 2 x 1.5V “AA” battery 4,000 hrs (“AA” 2000 mAh) |
| Response time | 200 ms |
| Proof pressure | 2 times full scale range, maximum 15,000 psi |
| Programmable functions Measuring units Peak memory |
Adjustable through front key pad bar, psi, MPa min/max, display, hold |
| Environmental rating | IP65 |
| Electromagnetic rating | CE compliant to EMC norm EN 61326:2014/A1:1998 RFI, EMI and ESD protection |
| Weight | 0.88 lb. |
