124A-92A13

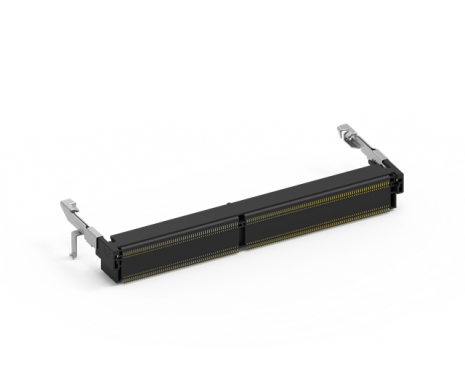

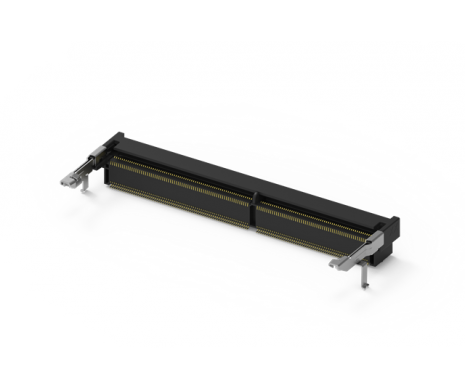

DDR4 SODIMM Socket, Horizontal 9.2H, RVS, G/F, Black, Reel, Solder PEG
Since SO-DIMM roughly half the size of regular DIMMs, it often used in systems with limited space, such as laptops, notebooks, small-footprint personal computers, high-end upgradable office printers, and networking hardware…etc. ATTEND offers various selections from DDR2 to DDR4 with different types, including vertical and standard type.
Description
SPECIFICATION
| Current Rating | 0.6A per pin |
|---|---|
| Voltage Rating | 25V AC/DC |
| Contact Resistance | 60mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 50 Cycle |
|---|---|
| Insertion Force | 59.8N Max. |
| Extraction Force | 44.6N Max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow(Wave Soldering) Temperature | 260℃ |
|---|
