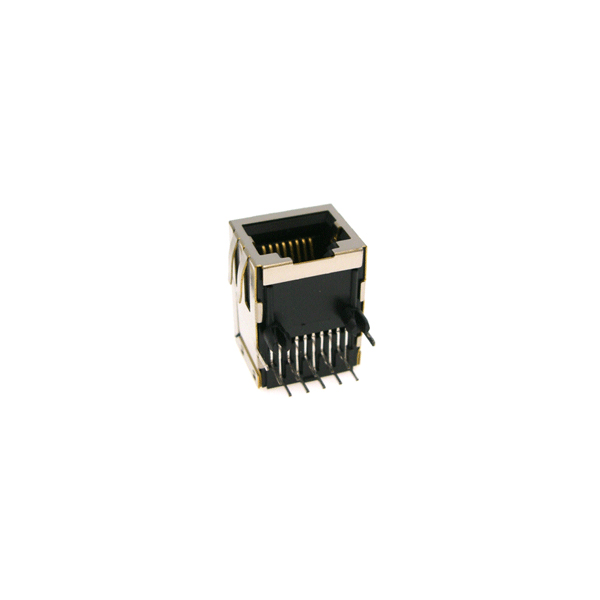

Features
- Shield Type – Shielded
- Mount Style – Thru-hole
- Meets IEEE 802.3 Specification
- EMI Suppression performance
- Peak solder rating 260 degrees C
- LEDs -Also available without LEDs
- Staggered Pins with a length of 21.6mm
| Magnetics Device Type | Series | Ethernet Version | Height | Width | Depth | Inductance | Package | Transformer | Turns Ratio | Lead Free Solder Processes |
|---|---|---|---|---|---|---|---|---|---|---|
| Magnetics Module without LEDs | XRJF/XMF Discrete Networking | 10/100 Ethernet | 13.20mm | 15.80mm | 21.60mm | 350 μH | Thru-Hole Module | To Reguired Schematic | 1:1 | Wave solder capable to 240°C or 260°C |
