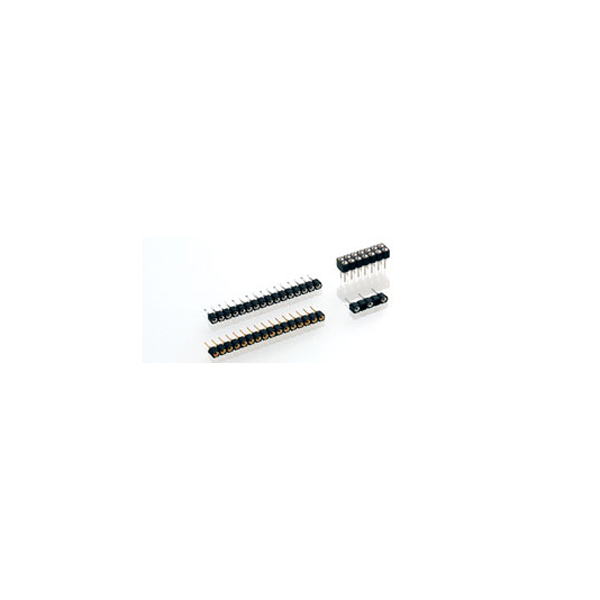

Socket connector strips, solder tail
Technical specs
- Insulator: Black glass filled polyester PCT-GF30-FR
- Flammability: UL 94V-O
- Sleeve: CuZn36Pb3 (C36000)
- Contact: Clip (4 finger): Beryllium copper (C17200)
- Mating pin Ø: 0.40 to 0.56mm
- Insertion force: 2 N typ.
- Withdrawal force: 1 N typ. (polished steel gauge Ø 0.43 mm)
- Mechanical life: Min. 500 cycles
- Rated current: 3 A
- Contact resistance: Max. 10 mΩ
- Dielectric strength: Min. 1000 V RMS
