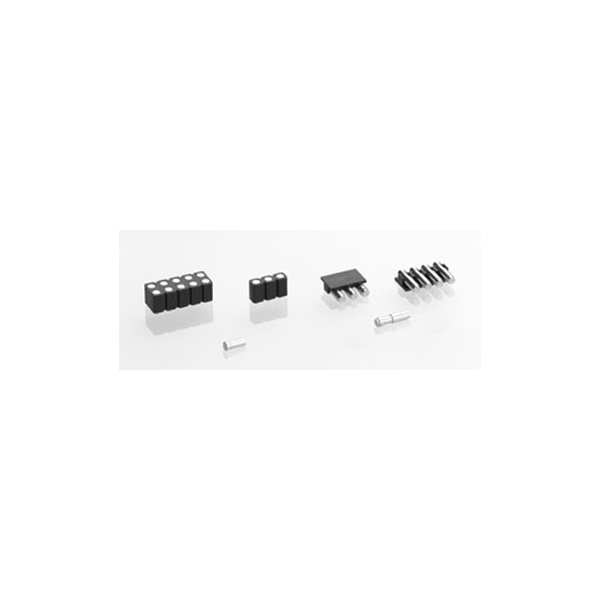

Pad connectors with fixed contacts, counterparts for spring- loaded connectors
Technical specs
- Insulator: Black glass filled polyester PCT-GF30-FR
- Flammability: UL 94V-O
- Contact: Brass CuZn36Pb3 (C36000)
- Contacting area Ø: 1.5 mm
- Max operating current: 3.5 A
- Dielectric strength: Min. 1000 V RMS
- Coplanarity SMD terminations: Max. 0.1 mm (measured on 25 mm long connectors)
Download: PDF
