Description
- Rated Voltage: 110V-250V
- Rated Current:5-20A
- Color: Black
- Material: Nylon
- Gender: Male And Female
- Application: Power,Data

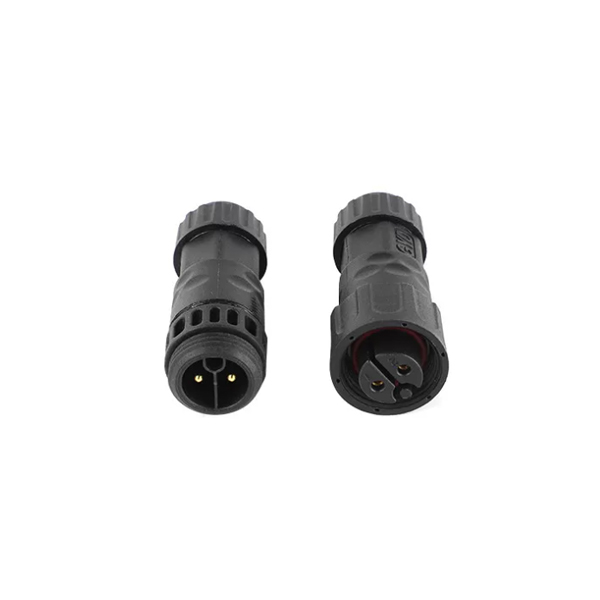

- High Light: Black IP68 waterproof connector, CE Waterproof data Connector, M19 Waterproof Data Connector
Features:
- Rated current: 5-20A/10rms.
- 2-4pin power supply, 5-9pin signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3.5~12mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main Characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Application of Bett M19 Connectors:
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Operation Parameters |
|
| Voltage Rating | 300VAC max |
| Current Rating | 5-20A max |
| Min Wire Size OD | 3.5mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 12mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
