Application:

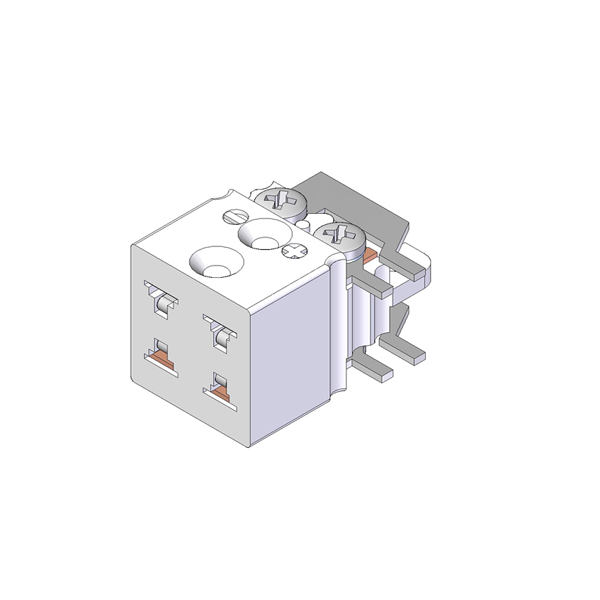

Miniature Duplex Jack for thermocouple and RTD circuits. Designed for direct soldering onto printed circuit boards. This version is suitable for side mounting, other versions available, please see separate specification sheet.
Construction:
– Glass filled thermoplastic body with original thermocouple material pins and springloaded inserts.
– Copper pins with silverplating.
– Rugged one body design.
Temperature rating:
– 200 °C Max.
Color Code:
– Available in all color code standards incl. NFE, BS, JIS, etc.
