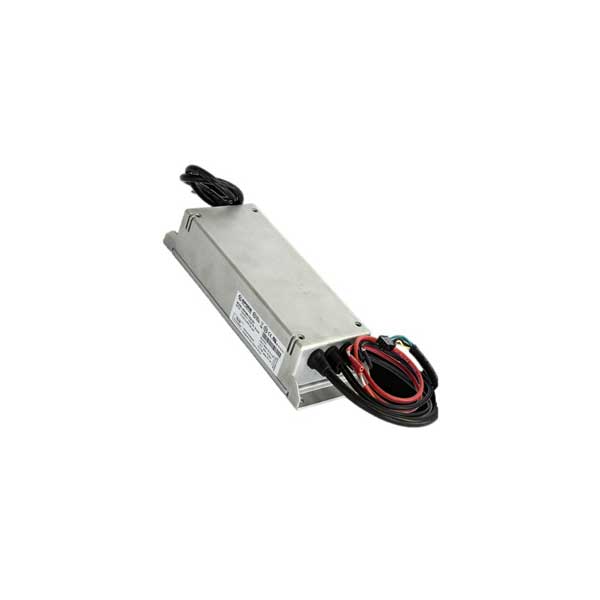

DDP400-US24-SC


  • Part Number:DDP400-US24-SC
  • Total Power:400 W
  • Supply Type:Enclosed
  • V(in) Range:90-264 VAC
  • Standard V(in) Range:80-265 VAC
  • Number of Outputs:1 Output
  • Output 1:24 VDC
  • Output 1:12.5 A
  • Cooling:Conduction, Convection
  • % Typ Efficiency:94
  • Operating Temp. Min:-20 °C
  • Operating Temp. Max:50 °C
  • Operating Temp Range:-20 – 50 °C °C
  • Length:8.34 in
  • Width:3.27 in
  • Height:1.65 in
  • Safety:CE, CSA C22.2 No. 60950-1, EN60950-1, IEC, UL60950-1

Download: Datasheet
