Product Details

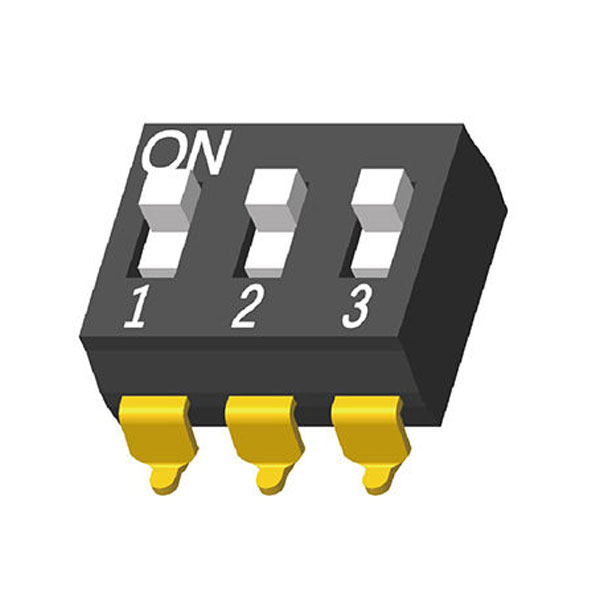

Model Number:64SWT-AB6B083
Origin:China (mainland)
Key Specifications/Special Features:
Specifications
Contact rating: 100mA at 50Vdc non-switching,
25mA at 24Vdc, 10mA at 50Vdc
Switching contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric breakdown voltage: 500V for one minute
Operating force: 1000gf Max
Operation temperatures: -40°C to +85°C
Storage temperatures: -40°C to +85°C
Mechanical life: 3000cycles minimum
Electrical life: 2000cycles minimum
Material
Insulator: PBT, UL 94V-0
Contact: Copper alloy, gold plate over nickel
Contact rating: 100mA at 50Vdc non-switching,
25mA at 24Vdc, 10mA at 50Vdc
Switching contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric breakdown voltage: 500V for one minute
Operating force: 1000gf Max
Operation temperatures: -40°C to +85°C
Storage temperatures: -40°C to +85°C
Mechanical life: 3000cycles minimum
Electrical life: 2000cycles minimum
Material
Insulator: PBT, UL 94V-0
Contact: Copper alloy, gold plate over nickel
