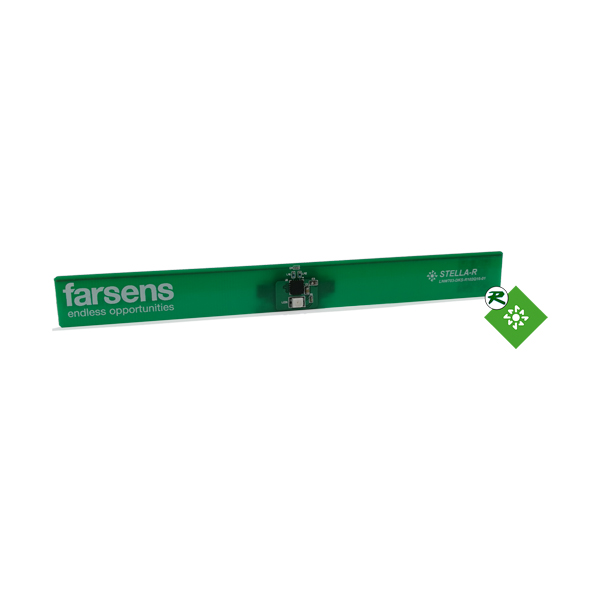

The EVAL01-Stella-R is a UHF RFID battery-free LED tag. The device features an ASMT-SGB5-NW703 LED from Avago Technologies with a viewing angle of 120 degrees.
The tag is compatible with EPC C1G2 RFID commercial readers. No custom hardware or custom commands are required.
The EVAL01-Stella-R is ideal for visual aid in identification processes. The battery-free LED device provides a unique identification number with which the reader can order the LED to flash. It works for applications such as picking processes in warehouse and retail stores.
Features:
- 860MHz-960MHz operation
- Read range @ 2W ERP: 5 meters
- EPC Class-1 G2 compliant
- ISO 18000-6 Type C compliant
- 128-bit EPC & 96-bit TID
- LED color: green
- Dominant wavelength: 525 nm
- Viewing angle: 120 degrees
- Operating temperature: -30°C to +85°C
Download: PDF
