Detail

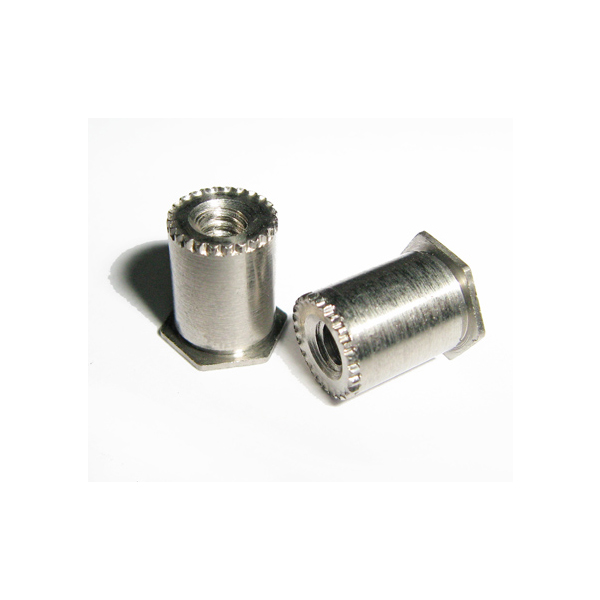

Grounding – SOAG, SOSG designed serration shape, it have better electrical contact with circuit boards foil.
All Dimensions are in inches.
| Thread Size | Model | Thread Code | Length”L”+.010-.000
Length Code is in 32nds of an Inch
|
Min.Sheet Thickness | Hole Size In Sheet +.003
-.000 |
C+.000
-.005 |
H
±005 |
P
Nom |
Min.Dist Hole C/L To Edge | D
Anvil Hole +.003 |
|||||||
| Stainless steel | Aluminum | .125 | .187 | .250 | .312 | .375 | .437 | .500 | .040 | .213 | .212 | .250 | .030 | .27 | .216 | ||
| .112-40
(#4-40) |
SOSG | SOAG | 6440 | 4 | 6 | 8 | 10 | 13 | 14 | 16 | .050 | .281 | .280 | .312 | .030 | .31 | .284 |
| .138-32
(#6-32) |
SOSG | SOAG | 8632 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | .050 | .281 | .280 | .312 | .030 | .31 | .284 |
All dimensions are in millimeters.
| Thread Size × Pitch |
Model
Stainless Steel Aluminium |
Thread Code | Length”L”±.0.25
Length Code in Millimeters
|
Min.Sheet Thickness | Hole Size In Sheet | C
-.013 |
H
±0.25 |
P
Nom |
Min.Dist Hole C/L To Edge | D
Anvil Hole +0.08 |
||||||
| .138-32
(#6-32) |
SOSG | SOAG | 3.5M3 | 3 | 4 | 6 | 8 | 10 | 12 | 1 | 5.4 | 5.39 | .6.4 | 0.76 | 6.8 | 5.5 |
