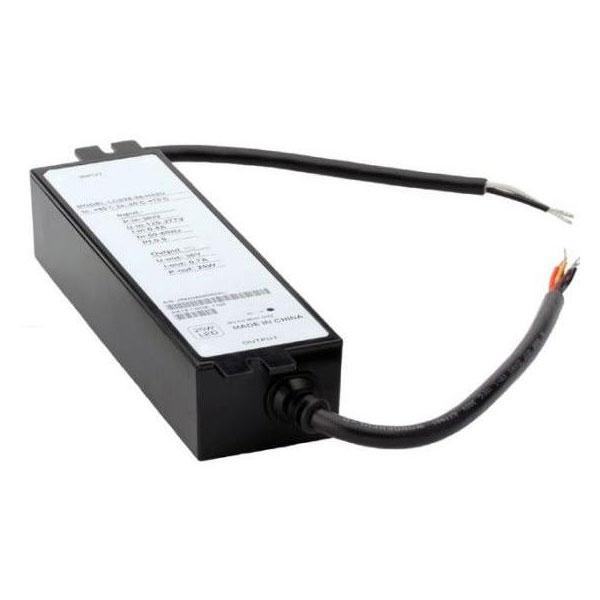

LDLDS25-36-H03U
AC/DC LED Power Supply 25W Single 8-Pin
Description
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| Type | Constant Current|Constant Voltage |
| Input/Output Type | AC/DC |
| Number of Outputs | 1 |
| Output Voltage Range (VDC) | 36(Typ) |
| Maximum Output Current (mA) | 700 |
| Output Power (W) | 25 |
| Input Voltage Range | 120VAC to 277VAC |
| Dimming | 0-10V |
| Power Factor Correction | 0.9(Min) |
| Efficiency (%) | 86(Typ) |
| Termination Style | Lead Wire |
| IP Rating | IP20 |
| Warranty | 2Year |
| Minimum Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 90 |
| Pin Count | 8 |
| Mounting | Screw |
| Package Height | 32 |
| Package Length | 174.5 |
| Package Width | 45.6 |
| PCB changed | 8 |
