M.2 is a specification supporting specifically keyed modules of different lengths that facilitate the addition or expansion of functions via a small form factor. The PCIe M.2 form factor is typically used for PCIe adaptation and small form factor NVMe SSD’s. SerialTek’s M.2 interposer supports all relevant keys, link-widths, and sidebands, including SMBus (e.g., NVMe-MI) from the host or from external / third-party injection or generation tools. SerialTek’s PCIe Gen4 M.2 Interposers with SI-Fi technology are specially designed test adapters that are physically placed in between the M.2 port and an M.2 endpoint to intercept and relay a copy of the high-speed signaling and discrete data lines to the Kodiak PCIe Analysis system in real-time.

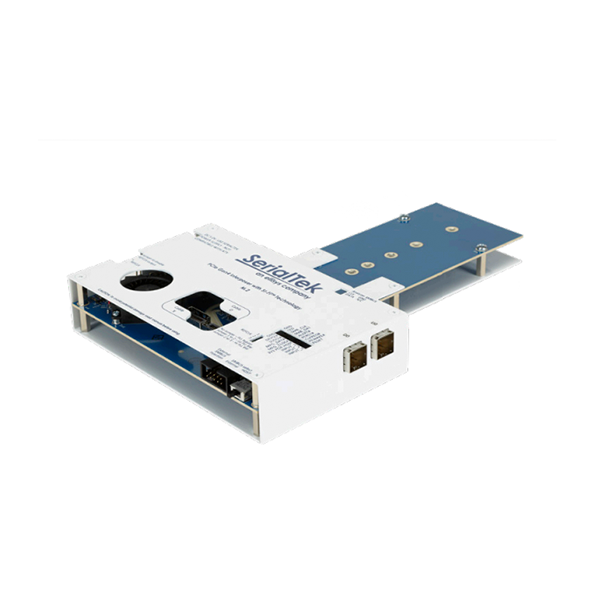

M.2 Interposer Overview
- Dimensions: 154 mm(W) x 34 mm(H) x 232 mm(L) (6 x 1.3 x 9”)
- Power connector: Molex 87427-0602
- Analyzer connectors: 2x SFF-8644
- Device connector: M.2 Socket 3, Key M, 22110, 2280, 2260, 2242, 2230
- Host module connectors: 2x MCIO 38 pin
- SMBUS injection connector: 2×5 pin 0.1” header, 3.3 Vdc
- REFCLK output connectors: 2x U.FL, AC coupled LPHCSL
- REFCLK output control connector: 2 pin 0.1” header, 3.3 Vdc
- REFCLK buffer control connector: 3 pin 0.1” header, 3.3 Vdc
- Sideband signal access connector: 2×9 pin 0.1” header, 3.3 Vdc
M.2 Interposer Sideband Signals
- GND
- DEVSLP
- SUSCLK
- MFG_DATA
- MFG_CLOCK
- 3V3 PCIE HOST
- INPUT_1
- INPUT_2
- INPUT_3
- LED
- SMB_CLK
- SMB_DAT
- ALERT#
- PERST#
- CLKREQ#
- PEWAKE#
- PEDET
