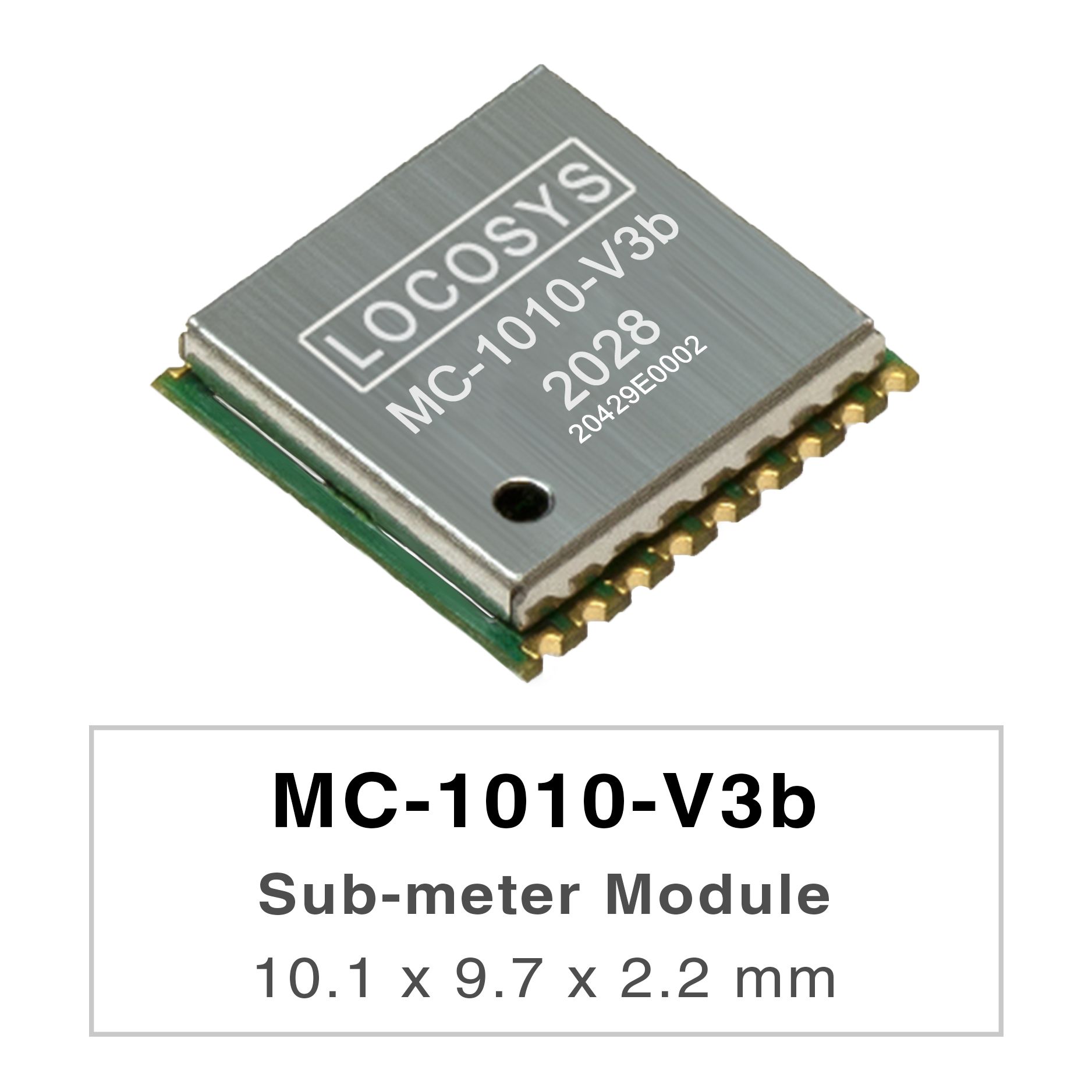

MC-1010-V3x with the active antenna can comply with the sensitivity specification contained in AIS 140 standard. It is the best solution to those customers that design tracking applications in compliance with AIS 140.
FEATURES
- Support GPS, GLONASS, GALILEO, BEIDOU, QZSS and NAVIC
- Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN) and QZSS SLAS
- Support 135-channel GNSS
- Ultra low power consumption (option)
- Fast TTFF at low signal level
- Free hybrid ephemeris prediction to achieve faster cold start
- Up to 10 Hz update rate
- ±15ns high accuracy time pulse (PPS)
- Support Linux and Android OS driver
- Protocol support binary output
- IATF 16949 quality control
- Small form factor 10.1 x 9.7 x 2.2 mm
- SMD type with stamp holes; RoHS compliant
SPECIFICATION
| MC-1010-V2b | MC-1010-V3b | ||
| Satellite System | GPS + QZSS + GALILEO + GLONASS + BEIDOU | GPS + QZSS + GALILEO + GLONASS + BEIDOU+IRNSS | |
| Interface | UART | ||
| Input Voltage | 3.1V – 4.5V | ||
| Power(mA) | 56mA | 35mA | |
| VB (uA) | 44uA | ||
| Operating Temp (°C) | -40 ~ 85 | ||
| Dimension (mm) | 10.1 x 9.7 x 2.2 mm | ||
APPLICATIONS
- Personal positioning and navigation
- Automotive navigation
- Autonomous Vehicle (ex: AVN/T-BOX/HUD)
- Marine navigation
- Fleet management
- Unmanned Aerial Vehicles
- Hand-Held Device
- Tracker
