Description

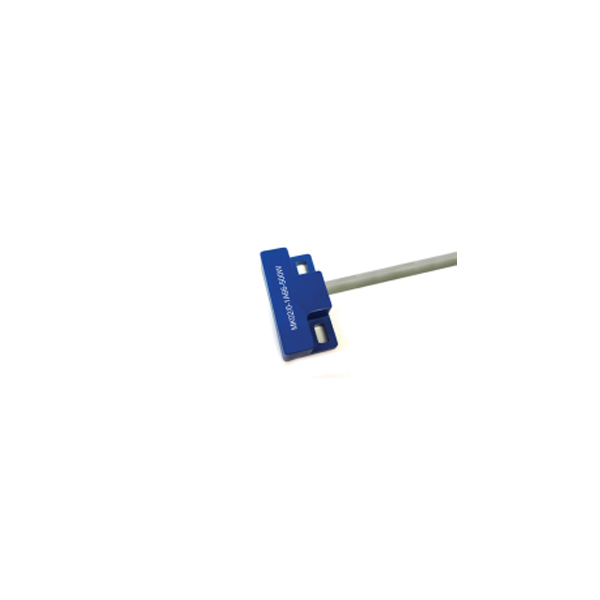

Ferrous metal detection screw fastened flange mount MK02 Series Reed Sensor in a rectangular housing with cable terminals. Front or above operation. UL Approval, IP67 Rated
UL Certificate of Compliance (MKxx/xU *Series followed by U)
Specifications
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 4.5-15 MM |
| Rated Power Max. | 10W/200VDC/0.5 |
Download: PDF
