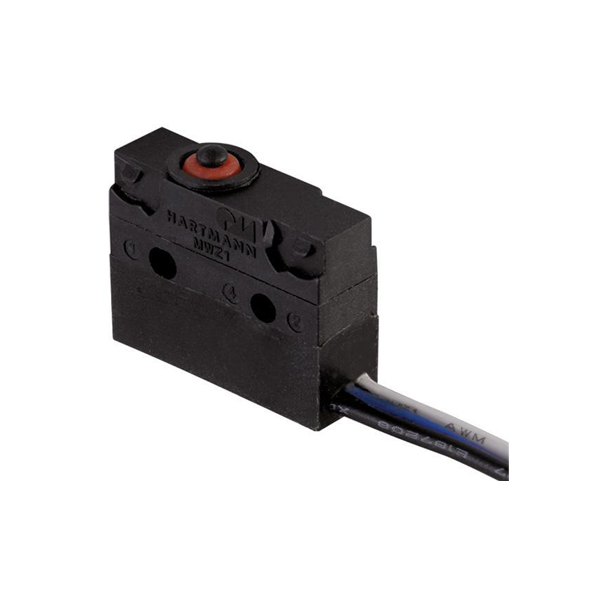

MWZ1 WIRED VERSION


  • Micro switches design B acc. to DIN 41635
  • Waterproof design acc. IP67
  • Many actuator and terminal variations available
  • Functional final inspection and testing
  • Solid design
  • High-quality materials
  • Very exact switching position

Micro switches, also known as snap action switches, are primarily used as limit switches, but are also suitable for many other industry applications. The actual switching speed is completely independent from the speed of operation. ISO 9001 approved production together with 100% functional final inspection and testing guarantee reliable operation. These products reflect our long standing experience in design and production of high quality switches.


Mechanical

Length 19.8 mm
Width 6.4 mm
Height 9.55 mm
Mechanical lifetime min 1.000.000 actuations
Electrical lifetime min. 50.000 actuations, depending on switching capacity
Movement differential see know how – Overview Actuators Travel | Forces
Pre-travel see know how – Overview Actuators Travel | Forces
Overtravel see know how – Overview Actuators Travel | Forces
Operating position see know how – Overview Actuators Travel | Forces
Contact opening < 3 mm (µ)

Material

Housing PA66-FR50
Cover PA66-FR50
Actuator PBT
Pin plating CuZn, Ag plated
Contacts AgNi
Contact spring stainless steel
Actuator sealing Methyl-Venyl Silicone-rubber
Contact sealing epoxy resin

Other Data

Approvals cULus
