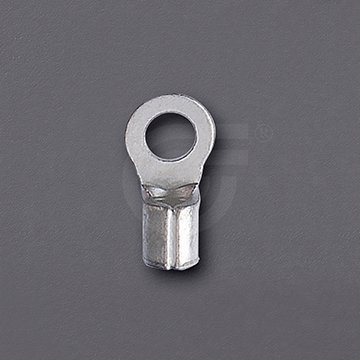

Non-Insulated Ring Terminals

Non-Insulated Ring Terminals

– Ring Terminals feature a standard style tongue and are built to ensure secure connectivity.
– Brazed seam protects terminal barrel from splitting during the crimping process

Category: Connectors

Description
Brand

Description

Part.No	Dimension					Wire Range
Part.No	d1 mm	d2 mm	B mm	L mm	t mm	AWG	mm2
R1.25-3B	1.9	3.2	5.5	11.5	0.7	22-16	0.5-1.5
R1.25-3.5B	1.9	3.7	5.5	11.5	0.7	22-16	0.5-1.5
R1.25-3.5LB	1.9	3.7	6.6	14.4	0.7	22-16	0.5-1.5
R1.25-4B	1.9	4.3	8.0	15.8	0.7	22-16	0.5-1.5
R1.25-4MB	1.9	4.3	6.6	14.4	0.7	22-16	0.5-1.5
R1.25-5B	1.9	5.3	8.0	15.8	0.7	22-16	0.5-1.5
R1.25-6B	1.9	6.4	11.6	21.5	0.7	22-16	0.5-1.5
R1.25-8B	1.9	8.4	11.6	21.5	0.7	22-16	0.5-1.5
R 25-10B	1.9	10.5	13.7	25.5	0.7	22-16	0.5-15
R1.25-12B	1.9	13.0	19.0	28.7	0.7	22-16	0.5-1.5
R2-3MB	2.5	3.2	6.6	14.4	0.8	16-14	1.5-2.5
R2-3B	2.5	3.2	8.5	16.8	0.8	16-14	1.5-2.5
R2-3.5B	2.5	3.7	6.6	14.4	0.8	16-14	1.5-2.5
R2-3.5LB	2.5	3.7	8.5	16.8	0.8	16-14	1.5-2.5
R2-4B	2.5	4.3	8.5	16.8	0.8	16-14	1.5-2.5
R2-4MB	2.5	4.3	6.6	14.4	0.8	16-14	1.5-2.5
R2-5MB	2.5	5.3	8.5	16.8	0.8	16-14	1.5-2.5

Brand

Giantlok
