PA Series

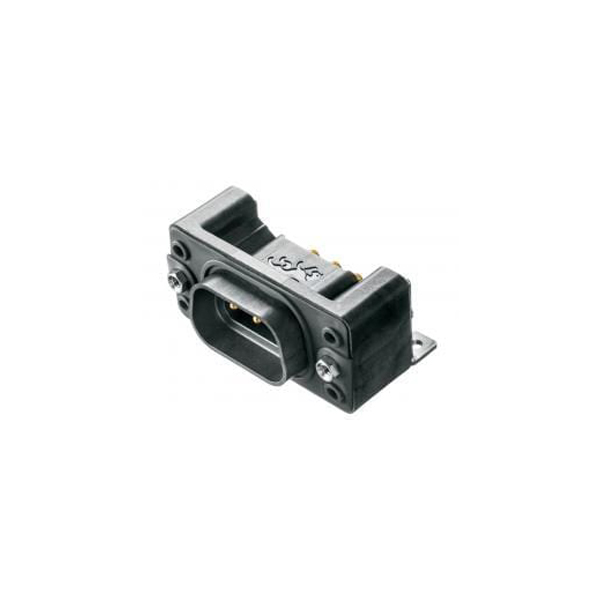

The PA series IP65/IP67/IP68/IP69K connector offers a multiplicity of connector features, which makes it a first choice for demanding rail, earthmoving, battery and related applications. It features operating temperatures up to 200ºC and is UV, shock & vibration, and salt spray protected.
Description
General
| Part Number Prefix | PA |
| Performance Level | Industrial, Mil/aero |
| Qualifications | UL, IEC safety standard, Shock/Vibration testing standard, EN45545-2 HL3, FAR 25.853, NFF 16-101/102, Salt spray test |
Materials
| Insulator Material | LCP |
| Insulator Color | Black |
| Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold flash, 0.76µm Au, 1.27µm Au |
Electrical
| Insulator Resistance (GΩ) | 5.0 |
| Working Voltage (V rms) | 1600 |
| Initial Contact Resistance (mΩ, max) | 5 |
| Contact Current Rating at 30ºC Temperature Rise | Up to 45A |
| Contact Current Rating per UL 1977 | Up to 105A |
Mechanical
| Shape | Rectangular |
| Body Style | Free cable, Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Trapezoidal shape |
| Locking System | Jackscrews |
| Contact Style | Fixed, Removable |
| Contact Size | #22, #18, #16, #12 |
| Female Contact Design | Closed entry |
| Contact Retention Mechanism | Metal clip, Press-in |
| Contact Retention (N) | 45 to 67 |
| Contact Termination | Wire, PCB |
| Mating Cycles | 1000 |
Environmental
| Temperature Range (ºC) | -55 to 200 |
| Lead Free Solder Process | Yes |
| Waterproof | IP65, IP67, IP68, IP69K |
| UV Protection | Rated (f1) per UL 746C |
