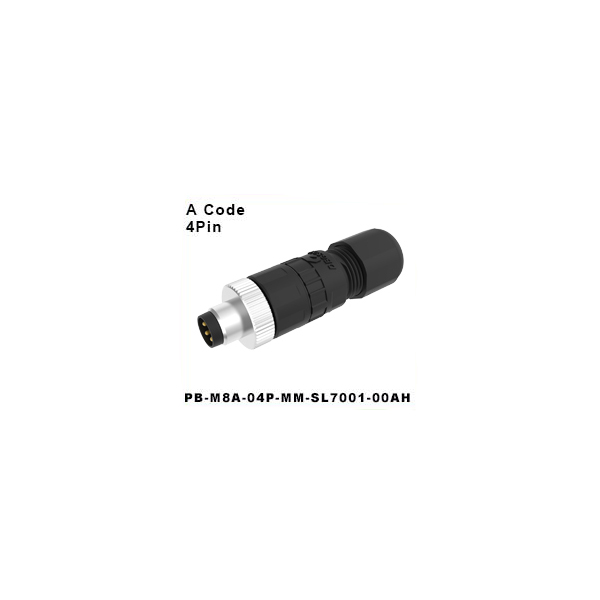

PB-M8A-04P-MM-SL7001-00AH
- Number of contacts: 4
- Coding: A-coded
- Rated current: 3A
- Rated voltage: 50V AC,60V DC
- IP Rating: IP67
- Operating temperature: -40~85°C
Description
Specification |
|
| Convention | |
| Standard | M8 IEC 61076-2-104 |
| Number of contacts | 4 |
| Coding | A – coded |
| Connector Style | 180°Male |
| Termination | Screw connection |
| Wire gauge | 0.25/0.34 mm2 / (22/24 AWG) |
| Cable OD | 4.0~6.0mm |
| Operating temperature | -40 °C … +85 °C |
| IP Rating | IP67 |
| Mechanical operation | >100 |
| Torque | 0.3 Nm … 0.4 Nm (M8 knurl) |
| 0.5 Nm (Connector with coupling sleeve) | |
| 0.3 Nm … 0.4 Nm (Pressure screw for outer cable diameter 3 .5mm … 4mm) | |
| 0.8 Nm … 1 Nm (Pressure screw in the case of external cable diameter 4 mm … 5 mm) | |
| 0.1 Nm (Screw terminal blocks) | |
| Installation type | Assemble |
| Electrical properties | |
| Rated current (40oC) | 3A |
| Rated voltage | 50V AC,60V DC |
| 850V | |
| Contact resistance | <10mΩ |
| Insulation resistance | ≥100MΩ |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Material | |
| Flammability rating according to UL 94 | V0 |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact material | PA |
| Sealing material | NBR |
| Environmental protection | ROHS |
| Key Commercial Data | |
| MOQ | 100 PCS |
