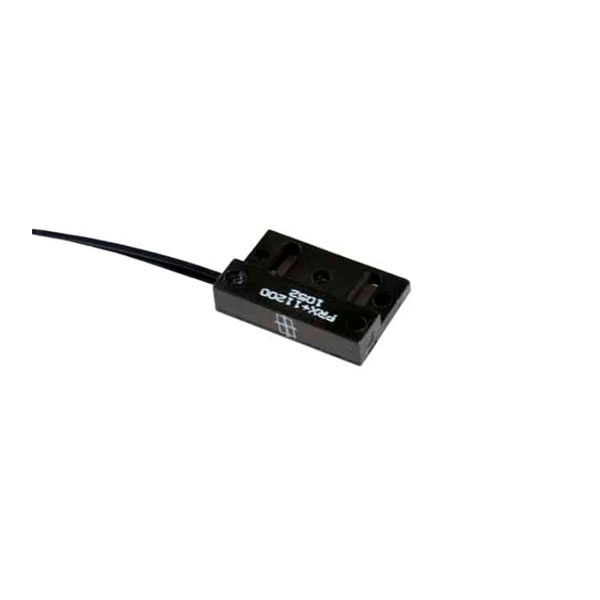

ELECTRICAL SPECIFICATIONS
Power 10 W (max) Voltage Switching 200 VDC (max) Breakdown 300 VDC (min) Current Switching 0.2 Amp (max) Carry 1.3 Amp (max) Resistance Initial Contact Resistance 1.0 Ohm (max) Insulation Resistance 1E11 Ohm (min) Capacitance Contact 0.2 pF (typical) Temperature Operating TO + 100 °C Storage -40 TO + 125 °C PHYSICAL/OPERATIONAL SPECIFICATIONS
Enclosure Material Plastic Operate Time Including Bounce 0.40 mSeconds (max) Release Time 0.10 mSeconds (max) Housing Volume Excluding Connection 3.43 cc-Nominal Must Operate Distance 0.100 Inches Must Release Distance 0.425 Inches Wire Gage 24AWG Wire Stranding 19×36 Wire Type UL1180 Wire Type 2 PTFE Shape Rectangular Height 28.45 mm Length 6.35 mm Width 18.95 mm
