Rating:125VAC 2A/250VAC 6A/125VAC 15A

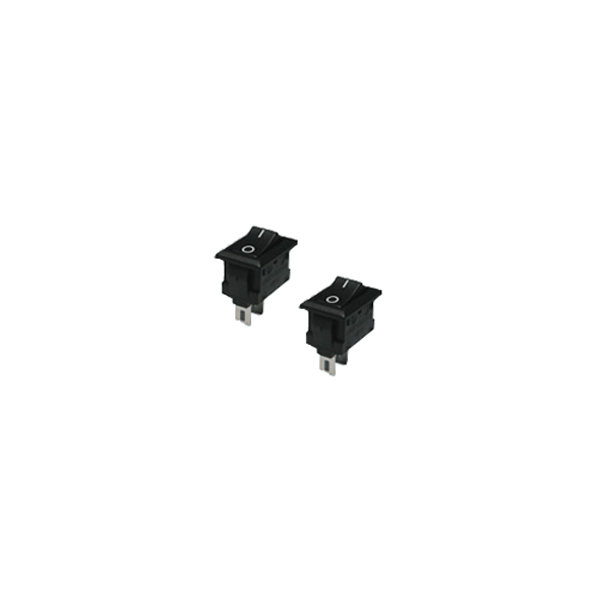

Rocker Switches
Specifications
- Electrical Rating:
- 2A 125V AC/ 250V AC(UL , VDE)
- 6A 250V AC(standard)(UL , VDE
- 15A 125V AC & 8A 250V AC(UL)
- Mechanical Life: Over 30000 cycles
- Electrical Life: Over 10000 cycles
- Contact Resistance:＜20 mΩ
- Insulation Resistance: ＞1000MΩ
- High Voltage Resistance: ＞1500VAC 1 min
- Ambient Temperature:
- Terminal side -20 to +85℃
- Actuating side -20 to +55℃
- Atmospheric Humidity: Max.85%
- Actuating Force: 3 to 6N(depends on different switch function)
- Flammbaility: UL94V-2 & UL94V-0
- Storage Temperature: -30 to +80℃ Max
- Temperature Rise at the terminal: Max 30℃(UL1054)
- Solder Ability of terminal: Max 350℃ 3s
Materials:
- Housing: PA66
- Rocker: PA66 & PC
- Contacts: Silver alloy
- Terminal: Copper or brass silver plated, phosphorus bronze
- Spring: SWC
- Movable Arm: Copper silver plated
- Lamp: LED
- Bracket: PA66
