Features |
|||
 |
Ultra-thin thickness 1.0mm. |  |
|
|
|
It is a completely sealed type with a metal case sealed on a ceramic board. | ||
|
|
Reflow is possible. | ||
|
|
RoHS compliant and lead free. | ||
| Type |

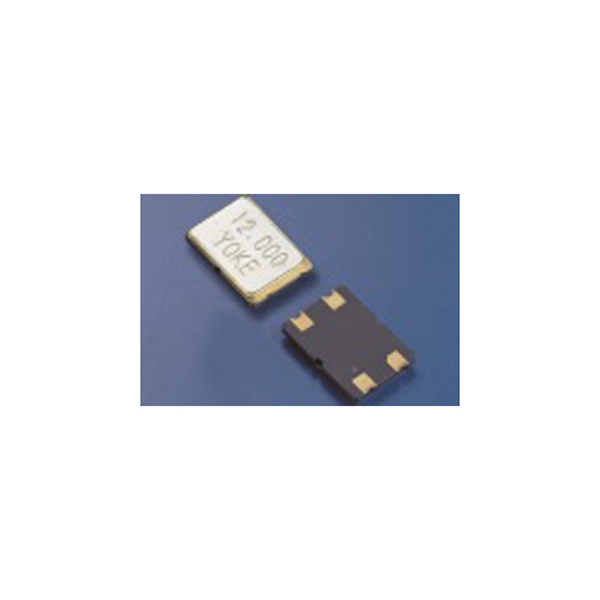

SMD Crystal UNITS 7.0*5.0*1.0mm
|
|
| Freq. range | Fundamental |
6.0 ~ 40.0MHz
|
| 3rd |
40.0 ~ 70.0MHz
|
|
| Vibration mode |
AT cut , Fundamental , 3rd
|
|
| Frequency tolerance（at 25℃） |
-/+10ppm , -/+30ppm , or specify
|
|
| Equivalent series resistance |
See table No.1
|
|
| Frequency stability over operating temperature range |
-/+10ppm , -/+30ppm , or specify
|
|
| Operating temperature range |
-10 ~ +60℃ , or specify
|
|
| Drive Level |
300uW Max.
|
|
| Shunt capacitance |
5.0pF Max.
|
|
| Load capacitance |
16pF, 18pF, 20pF, or specify
|
|
| Aging |
-/+2ppm/year , -/+5ppm/year
|
|
| Min. Packing |
1,000pcs/Reel
|
|
Equivalent series resistance(ESR) Table No.1 |
|
Dimension:
