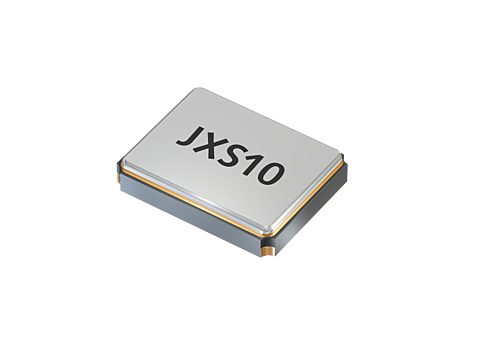

The Jauch JXS series
The JXS series is our preferred crystal series for various consumer and industrial applications.
The quartz crystals belonging to the JXS series are available in the industry standard package dimensions 1210, 1612, 2016, 2520, and 3225.
Description
Due to their high frequency stability down to ± 10ppm, the JXS quartz crystal series meets high standards and is particularly suitable for wireless applications such as ZigBee and Bluetooth. The miniature packages like 2016, 2520 and 3225 make JXS quartz crystals a perfect choice for highly miniaturized circuit boards. The metal lid of the JXS crystal series can be grounded for EMI shielding purpose.
Typical frequencies for wireless applications are available. (16.0MHz, 19.2MHz, 20.0MHz, 24.0MHz, 26.0MHz, 30.0MHz, 32.0MHz, 38.4MHz, 40.0MHz, 48.0MHz)
Technical Info
- High frequency stability down to ± 10ppm
- Wide frequency range available
- Standard package sizes 1210, 1612, 2016, 2520, 3225 and 5032
- Wide operating temperature ranges up to 125 ° C
- AEC-Q200 qualified versions available, view automotive quartz crystals
- JXS53 and JXS32 available as HMR versions (3000 G shock resistance)
- Typical applications include ZigBee, Bluetooth, WLAN, ISM band applications, GSM, DECT, and other wireless standards
- EMC shielding possible, as the metal lid can be grounded
- RoHS and REACH-compliant, 100% lead-free, conflict minerals free
