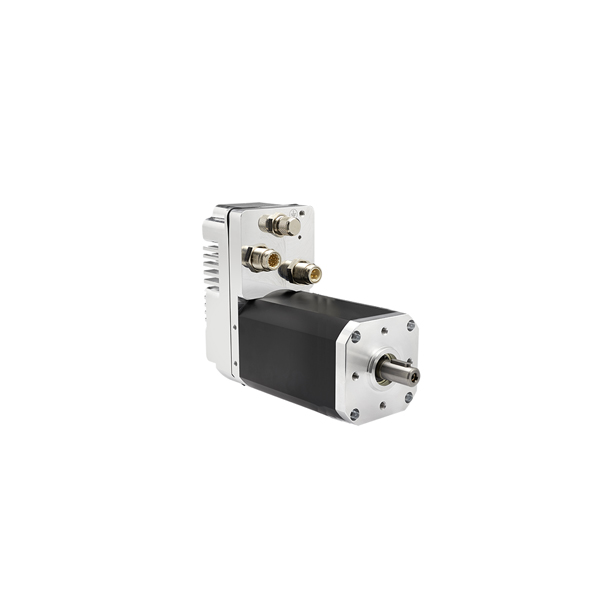

The new SQ75 DCmind Brushless motors have an integrated drive and CANopen communication bus for Motion Control applications up to 600 W nominal power and up to 6 Nm peak torque. More power, accurate precision, as well as enhanced safety and security features to secure your application.
Crouzet DCmind Brushless Motors range features high-performance Brushless DC motors having output power ratings from 77 to 600 W and a choice of three integrated electronic control systems as well as CANopen communication bus capability.
Crouzet DCmind Brushless motors are easy to integrate and use. They combine superb power density, integrated electronics and numerous functions for speed, torque and positioning control. Additionally, when equipped, they can be used as slaves in CANopen networks, making them ideal for applications in service robotics, industry, valves, pumps, access control and the energy sector.
Technical Specifications
| Model | Direct current motor |
|---|---|
| Rated voltage | 48 |
| Rated current | 15.1 |
| Voltage type | DC |
| Number of phases | 3 |
| Rated performance at rated frequency | 600 |
| Rated rotational speed at rated frequency | 3130 |
| Degree of protection (IP) | IP67 |
| Number of poles | 8 |
| Insulation class acc. IEC | Other |
| Frame size acc. IEC | 75 |
| Full-load efficiency | 85 |
| Nominal torque | 1.9 |
| Bearing | Ball bearing |
| With anti-condensation | 1 |
| Operation temperature | -30°C / +70°C |
| Cooling method | Air |
| Shaft end type | Key |
