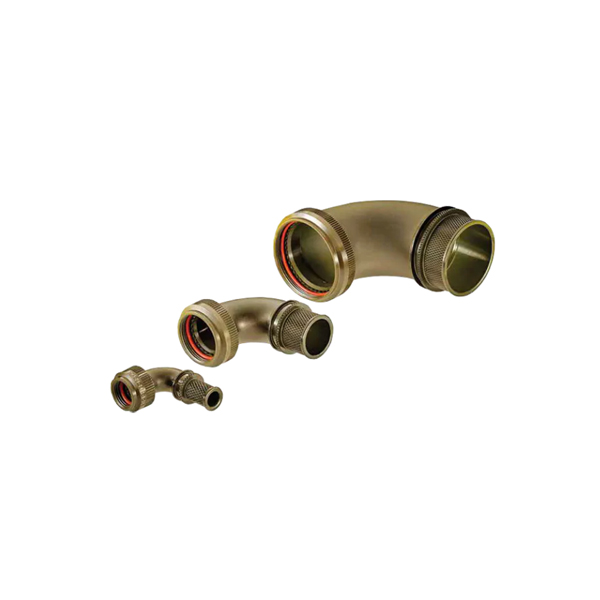

TE Connectivity’s Polamco Swept Elbow Backshells are designed with a smooth internal bore and a continuous bend radius. TE’s Swept Elbow Backshells are available in the band-termination (BT) style, allowing them to offer up to a 20% weight savings over traditional backshells. Swept Elbow Backshells are ideal for use in a variety of aerospace and defense applications, where a reliable termination solution is required. Swept Elbow Backshells serve a wide range of circular connectors, including MIL-DTL-38999 series III and IV and MIL-DTL-26482 series 2. The backshells include a range of entry sizes from 6mm to 29mm to suit a designer’s application cable diameters.
Features:
- Smooth 90° cable termination option for optic and standard cables
- Weight savings over traditional right-angle design
- Multiple shell sizes and plating finishes available
- Easy installation
- Simple and fast termination solutions
- Spin coupling nut allows for easy repair
- High-reliability solutions
- Backshells provide strain relief and cable support to help prevent bending or overflexing
- Overall 360° screening against electromagnetic and radio-frequency interference (EMI/RFI)
- Meets AS85049 category 3B sealing requirements (BTH version)
Applications:
- Aerospace
- Defense
