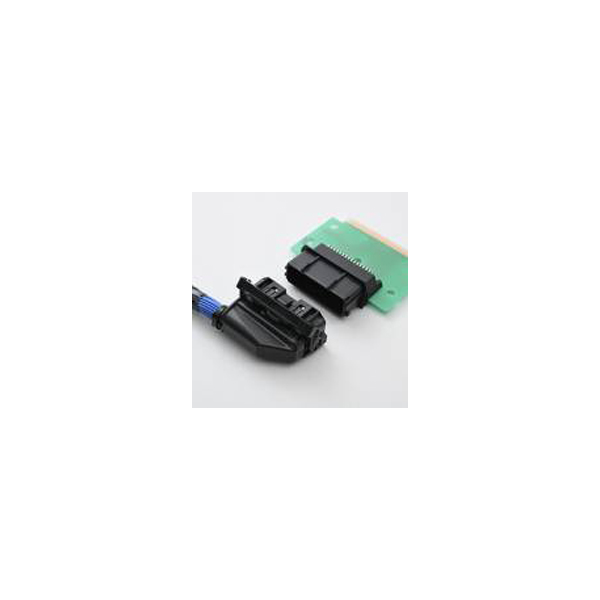

Wire to Board Connectors Crimp Style
Features:
This connector is 48 circuits sealed and lever type connector.
Female connector is ZRO, and TCUD male connector and is a lower height than ZRO male connector.
- Lower profile
The height from PC board is lower than ZRO connector
- Improvement of Operability
The lever is adopted to decrease the connector mating force.
The fixing part to PC board is lightly press-fitted boss configuration in consideration of the workability when assembling.
- Sealed
Mat seal is adopted for improving the workability of wire seal part.
- Durability
Heat resistant specification corresponding up to 125 degrees Celsius.
- Variation
If the optional harness cover is used, the harness can be taken out from the side.
- RoHS Compliant
Specification
| 01 – Connection Type: | Automotive |
|---|---|
| 02 – Product Type: | Wire to Board Crimp style Connectors |
| 04 – Current rating: | Power/7 A DC |
| 04 – Current rating: | Signal/5 A DC |
| 06 – Temperature range: | -40 to +125 Degrees Celsius |
| 07 – Available number of circuits: | 48 |
| 13 – PCB Mount Style: | Through-hole Technology (THT) |
