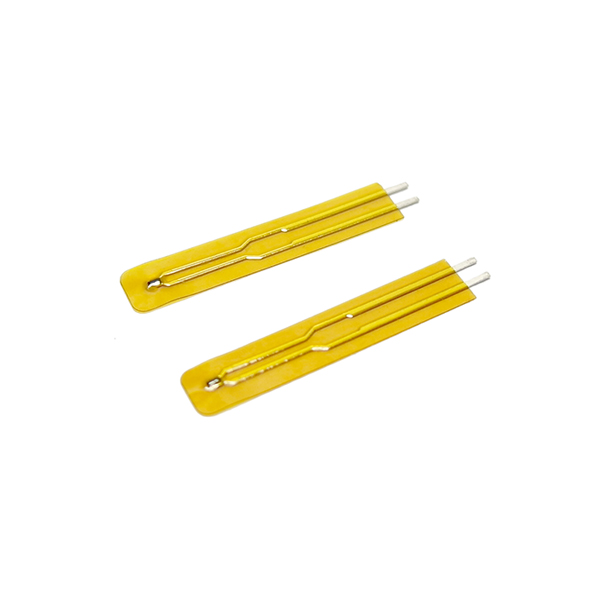

TJ (Film Type)


The TJ series thermistor possesses ultra thinness of 500μm and superior electrical insulation. It is possible to use with safety in ambience where might contact with electrodes.

  • Thin film, suitable for narrow space
  • Sensitive to environmental sensing and fast response
  • High stability
  • RoHS Compliance
  • Film sealed, excellent insulation
  • Length options: 15, 18, 25, 28 and 32 mm
  • Elastic and easy to solder

Specifications

Item

Symbol

Conditions

Specification

Unit

Resistance at Ta R25 Ta = 25°C 1,000 ~ 100,000 Ω
B constant B 25°C / 85°C 3100 ~ 4665 K
Thermal dissipation constant C Ta = 25°C 0.7 mW/°C
Thermal time constant T Ta = 25°C 5 sec
Operating temperature -30 ~ 90 °C
