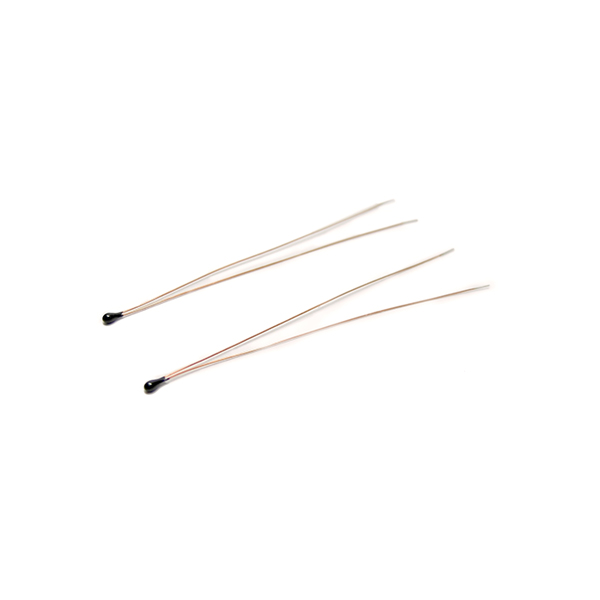

The TS series thermistor is smaller than the HT series thermistor. Its rapid response time and high reliability make it suitable for use in medical equipments and thermometers.
- Small body size, fast response
- Enameled wire, bendable
- High stability
- RoHS Compliance
- Epoxy coated, excellent strength
- Customized length
- Excellent thermal cycle endurance
Specifications
Item |
Symbol |
Conditions |
Specification |
Unit |
|---|---|---|---|---|
| Resistance at Ta | R25 | Ta = 25°C | 1,000 ~ 100,000 | Ω |
| B constant | B | 25°C / 85°C | 3100 ~ 4665 | K |
| Thermal dissipation constant | C | Ta = 25°C | 0.7 | mW/°C |
| Thermal time constant | T | Ta = 25°C | 3.2 | sec |
| Operating temperature | — | — | – 30 ~ 105 | °C |
