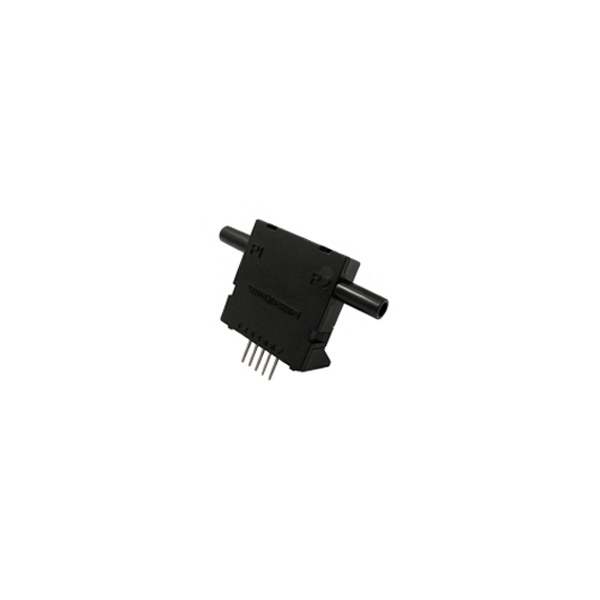

The WBI sensors with I²C bus interface offer mass flow measurement for air and gases based on a highly sensitive thermal measuring principle. The WBI series includes unidirectional as well as bidirectional flow ranges. The digital sensors achieve a very high accuracy over the complete measuring range in the positive as well as negative flow direction and feature fast response times and low power consumption.
Typical applications include HVAC, instrumentation as well as analytical instruments.
Technical specifications
| Flow ranges | 0…±200 sccm to 0…±1 slpm | |
| Output signal | I²C bus | |
| Repeatability and hysteresis (max.) | ±0.25 of reading | |
| Flow connection | tube fitting (Ø 5.1 mm) | |
| Size without ports and pins (approx.) | 31 x 16 x 32 mm |
