Overview

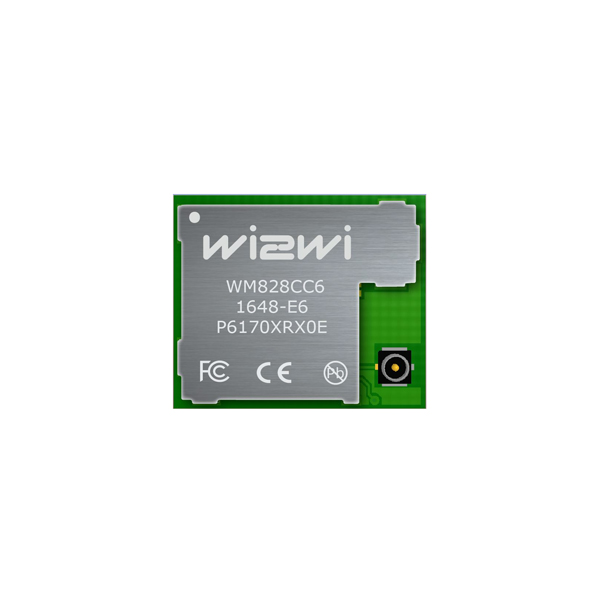

WM828CC6 from Wi2Wi’s Maximum Performance series is a Hosted Dual-Band Wi-Fi (802.11 ac/a/b/g/n) and Bluetooth 4.2/BLE (Dual-Mode) Multi Protocol, Combo Module with integrated MHF4 IPEX connector. This Wifi plus Bluetooth co-ex module is a highly integrated subsystem that includes integrated MAC, baseband, RF front-end, PA, crystal, switch, filter and OTP memory for calibration data and MAC address storage and offers High speed SDIO 3.0 host interface for easy connection to all leading 32 bit processors running Linux operating systems. The ultra-small form factor Multi-Band module, WM828CC6 gives Industry’s Best in class performance for very high throughput (VHT), high transmit (Tx) power, excellent receive (Rx) sensitivity. This ultra-low power Wi-fi + BT combo module supports deep sleep and standby modes for low power operations. The integrated Bluetooth 4.2 with LE specifications enables the new ecosystem of low energy Bluetooth Smart devices which can be tethered to the Smartphones and other consumer devices for new and emerging applications. This Combo Module is FCC, CE and IC certified and comes in extended temperature grade; -30°C to +85°C.
Features
- Ultra-Small WiFi+BT+BLE, multiprotocol module: 13 mm x 11 mm x 1.86 mm
- IEEE 802.11 ac/a/b/g/n Dual-Band Wi-Fi
- 20/40/80 MHz Channel Bandwidth
- Very high throughput up to 300 Mbps
- Support for Station/Client Mode, Access Point Mode, Wi-Fi Direct Mode and Simultaneous Station and Access point mode
- Maximum transmit power up to 18 dBm
- Single Power Supply 3.3V
- SDIO can operate at 1.8V /3.3V operation
- Drivers available for Linux
- Bluetooth 4.2, BLE (Dual-Mode/Smart-Ready)
- Fully integrated co-existence solution
- Support for SDIO host interfaces
- Compact, robust design for easy integration
- Optimized RF and electrical design for excellent performance
- Supports Extended Operating temperature range (-30°C to +85°C)
