Description
Feature:

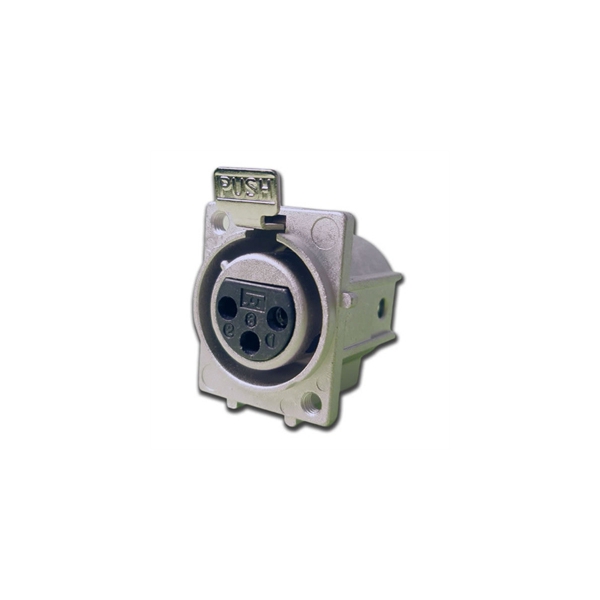

- PCB mount type with metal shell and barrel made as one piece
- Improved EMI Shielding
- Quick disconnect latch lock
- Interchangable and intermateable with XLR Series
Mechanical
| APPLICATION / MARKET: | Aerospace, Defense, Industrial, Transportation |
| SHAPE: | Circular |
| SHELL STYLE: | Flange Mount PCB receptacle |
| DURABILITY: | 500 Mating Cycles |
| POWER & SIGNAL IN SAME LAYOUT: | No |
| CONTACT STYLE / TERMINATION: | Solder |
Material
| SHELL: | Zinc Alloy |
| SHELL PLATING: | Nickel |
| INSULATOR: | Nylon or PBT (Polybutylene Terephthalates) |
| CONTACT: | Copper |
| CONTACT PLATING: | Silver |
Electrical
| OPERATING VOLTAGE: | 133VAC |
| CURRENT RATING: | 3A |
| NUMBER OF SIGNAL CONTACTS (MIN/MAX): | 3 |
| GAUGE WIRE SIZE: | N/A |
Environmental
| SEALING: | Not Available |
| OPERATING TEMPERATURE: | -35°C to +85°C |
